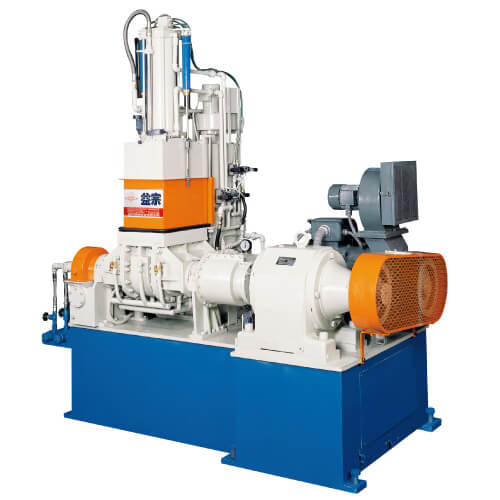

Classification : Laboratory Dispersion Kneader
Country: Taiwan
Phone: 886-4-25324185
Fax: 886-2-27217956
Contact Person: Mr.Wu
Inquiry Now
  • It is an indeal equipment for research and development of the latest rubber and plastics material.
  • It is specially designed for compounding wide range and small batch of rubber or plastics material.
  • Excellent cooling system is equipped to chill the material to be compounded into a high quality compounded material.
  • Designed to compound the material evely so as to meet the requirment of high quality and even compounded material.
  • The mixing chamber is constructed with heat resistance, wear out resistance and anti-corrosive.
Model YK3 YK5
Mixing capacity 3 L 5 L
Main motor AC10 AC30
Tilting motor AC1 AC1
Exhaust motor AC 1/4 AC 1/4
Feeding position Front Front
Operation panel position Front Front
Rotor speed (R.P.M.) 30/25 30/25
Air pressure (kg/cm2) 6-7 (kg/cm2) 6-7 (kg/cm2)
Temperature control Auto Auto
The main motor capacity can be adjusted base on different material.
