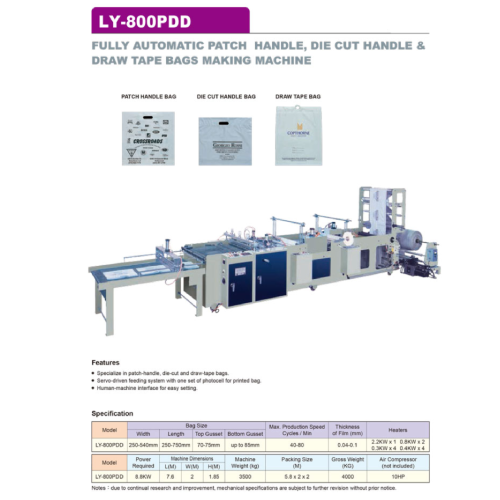

Fully Automatic Patch Handle, Die Cut Handle & Draw Tape Bags Making Machine LY-800PDD

Classification : Shopping Bags
Applications: Packaging Shopping Bags
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Inquiry Now
  • LY-800PDD is a high-speed, triple-function bag making machine which can produce patch-handle bag, draw-tape bag and die cut bag.The unique control of servo-feeding system allowing customer having stable production and the human-machine interface lets customers never worry about operation.
  • Specialize in patch-handle, die-cut and draw-tape bags.
  • Servo-driven feeding system with one set of photocell for printed bag.
  • Human-machine interface for easy setting.
Model Bag Size Max. Production Speed Thickness of Film (mm) Heaters
Width Length Top Gusset Bottom Gusset Cycles / Min
LY-800PDD 250-540mm 250-750mm 70-75mm up to 85mm 40-80 0.04-0.1 2.2KW x 1
0.8KW x 2
0.3KW x 4
0.4KW x 4


Model Power Required Machine Dimensions Machine Weight (kg) Packing Size (M) Gross Weight (KG) Air Compressor
(not included)
L(M) W(M) H(M)
LY-800PDD 8.8KW 7.6 2 1.85 3500 5.8 x 2 x 2 4000 10HP

Notes:due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
