Classification : Garbage Bags
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Features
- Fully automatic draw-tape type garbage bag making machine with 4-times folding unit.
- Servo-driven feeding system with one set of photocell for printed bag.
- Human-machine interface for easy setting.

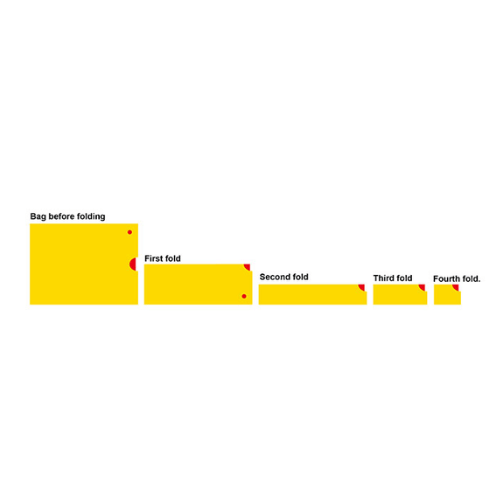

- Piece by piece 4-times folding unit.
| Model | Unwind Film width | Unwind Film diameter | Bag width | Bag length | Max. speed |
|---|---|---|---|---|---|
| LY-1250DF | 1200 mm | 1000 mm | 1000 mm | 1150 mm | 35M/per min |
| Model | Thickness | Machine Dimensions | Power required | Machine weight | Air compressor (Not included) |
||
|---|---|---|---|---|---|---|---|
| L | W | H | |||||
| LY-1250DF | 0.02-0.05 mm | 14M | 3.3M | 2.5M | 12 KW | 4500 KG | 10 HP |
