FIXED CLAMPS

Classification : Additional Products

FORWELL PRECISION MACHINERY CO., LTD.

FORWELL PRECISION MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao

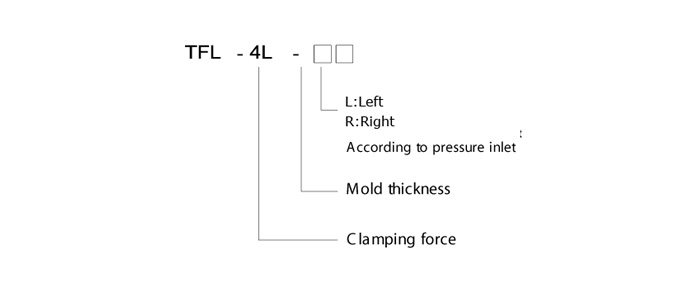

Model

TFL1L

TFL2.5L

TFL4L

TFL6L

TFL110L

TFL16L

Tons Clamping (Ton)

hydraulic pressure  140kgf/cm2

1

2.5

4

6.3

10

16

hydraulic pressure  0kgf/cm2

0.05

0.1

0.16

0.25

0.4

0.6

Full Stroke (mm)

3.5

4

4

4

4.5

4.5

Clamping Stroke Y (mm)

2

2

2

2

2

2.

Extra Stroke Z (mm)

1.5

2

2

2

2.5

2.5

Cylinder Capacity st Full Stroke

when clamping (cm3)

15

41

92

163

298

470

when unclamping (cm3)

6

11

28

48

87

143

Model

E

F

L

M

N

R

S

U

V

W

TFL1L

42

21

11

118

9

52

18

38

12

18

TFL2.5L

56

33

16

145

13

78

27

58

17

22

TFL4L

76

39

19

177

14.5

88

35

68

20

26

TFL6L

90

43

21

197

15

108

45

84

22

30

TFL10L

112

57

25

238.5

19

135

55

106

30

36

TFL16L

137

78

32

285

20

182

72

135

40

50



Model

Q

h(MIN)

A

B

C

D

PT

TFL1L

M8

20

50

59

9

21.5

1/8

TFL2.5L

M10

30

50

78

15

10

1/4

TFL4L

M12

30

60

93.5

15

15

1/4

TFL6L

M14

35

60

99

24

16

1/4

TFL10L

M18

40

55

121

30.5

25

3/8

TFL16L

M24

40

62

156.5

30.5

77

3/8
