PRM-TAIWAN
Classification : PCB Fine Pierching System
Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao
  • High precision, quality and durability
  • Easy operation and maintenance
  • Suitable for fine piercing of high-density printed circuit boards
  • Decreased die change time
  • Automatic system, reducing labor costs
fORWELL'S PCB Fine Piercing Systems made by Forwell Precision Machinery Co. Ltd combine a hydraulic power unit charged with air pressure, a piercing plate and a quick die change system. This system uses hydraulic pumps to activate the pressing operation, either using automatic or manual control. Also due to the hydraulic power unit, this system is very energy efficient and highly reliable, and with its simple structure easy maintenance is ensured.

 Moreover with this system easy adjustments can be made to the operating pressure according to the PCB material and specifications, generating efficient pressing and excellent results. Additionally these systems are perfect for high quality, high accuracy piercing and stripping of PCB’s, and with a quick die change system, increased productivity is guaranteed.

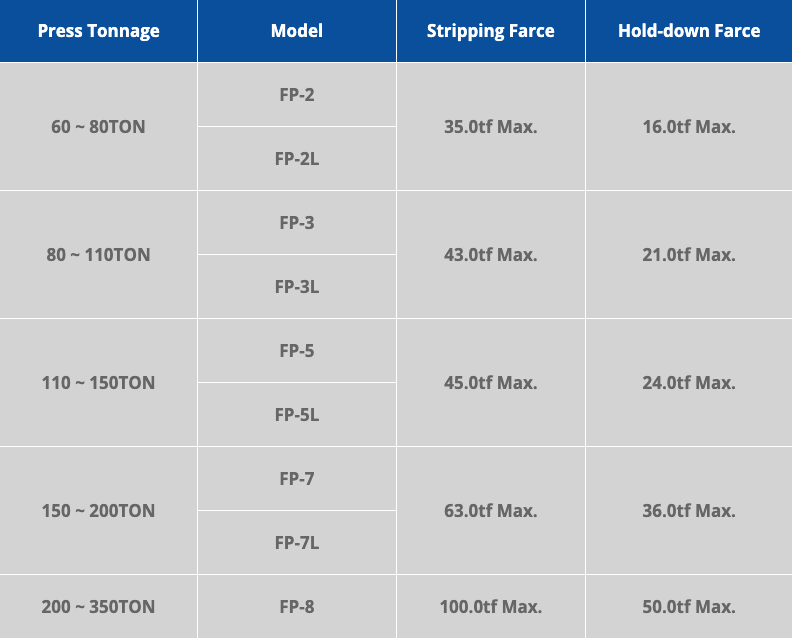

Press Tonnage Model Stripping Farce Hold-down Farce
60 ~ 80TON FP-2 35.0tf Max. 16.0tf Max.
FP-2L
80 ~ 110TON FP-3 43.0tf Max. 21.0tf Max.
FP-3L
110 ~ 150TON FP-5 45.0tf Max. 24.0tf Max.
FP-5L
150 ~ 200TON FP-7 63.0tf Max. 36.0tf Max.
FP-7L
200 ~ 350TON FP-8 100.0tf Max. 50.0tf Max.
