TX DIE CLAMP

Classification : Additional Products

FORWELL PRECISION MACHINERY CO., LTD.

FORWELL PRECISION MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao

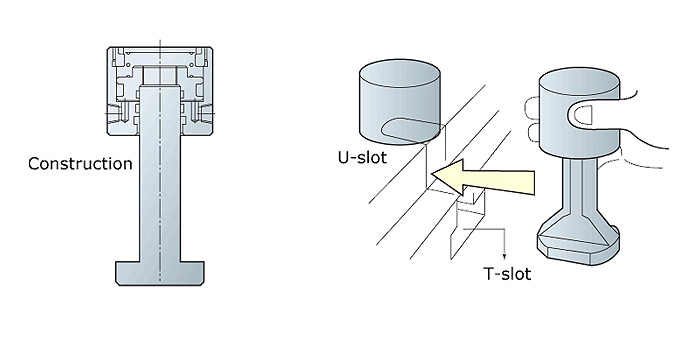

This compact, space saving, piston type clamp requires U-slots on the die shoe. The clamp leg is machined to fit the T-slot on the bolster. With the TX Die Clamp automatic slide model remote control is made possible.


Model

Unit

TX-1

TX-2

TX-4

TX-6

TX-10

TX-16

TX-25

Clamping Farce(at 250kgf/cm2)

tons

1

2

4

6.3

10

16

25

Full Stroke (X)

mm

5

8

8

8

8

8

8

Clamping Stroke (Y)

mm

2.5

4

3

3

3

3

3

Extra Stroke (Z)

mm

2.5

4

5

5

5

5

5

Cylinder Capacity at Full Stroke

cc

2.7

6.5

13

21

32

54

84


* Extra stroke is the difference between full stroke and clamping stroke with extra space allowed for safe operation.

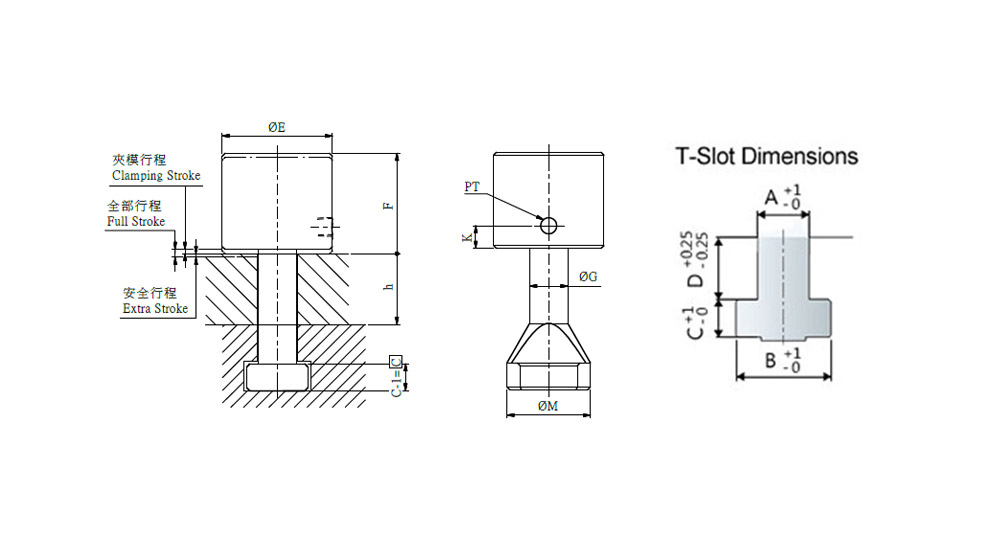

Model

E

F

G

H

K

MIN.

PT

X-1

38

38

14

35

11

8

1/8

TX-2

53

52.5

18

38

12

8

1/8

TX-4

68

61.5

23

59

15

10

1/4

TX-6

78

68

27

59

16

14

1/4

TX-10

98

71

38

79

16

17

1/4

TX-16

127

78.5

48

88

16

20

1/4

TX-25

148

100

58

98

15

23

1/4


* Die shoe thickness(h)Classify:25、30、35、40、45、50、55、60mm

* Before purchase, please verify mold edge thickness (h) and T-slot (A.B.C.D.) has standard or special dimensions

Model

A

B

C

D

Power Unit Models

TX-1

22

37

16

24

FP6308U--

TX-2

22

37

16

24

TX-4

22

37

16

24

TX-6

28

48

20

28

TX-10

28

48

20

28

FP1014U--

TX-16

28

48

23

28

TX-25

36

56

25

28

* Die shoe thickness(h)Classify:25、30、35、40、45、50、55、60mm

* Before purchase, please verify mold edge thickness (h) and T-slot (A.B.C.D.) has standard or special dimensions.
