PRESSURE CLAMPS
Classification : Additional Products
FORWELL PRECISION MACHINERY CO., LTD.

Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao

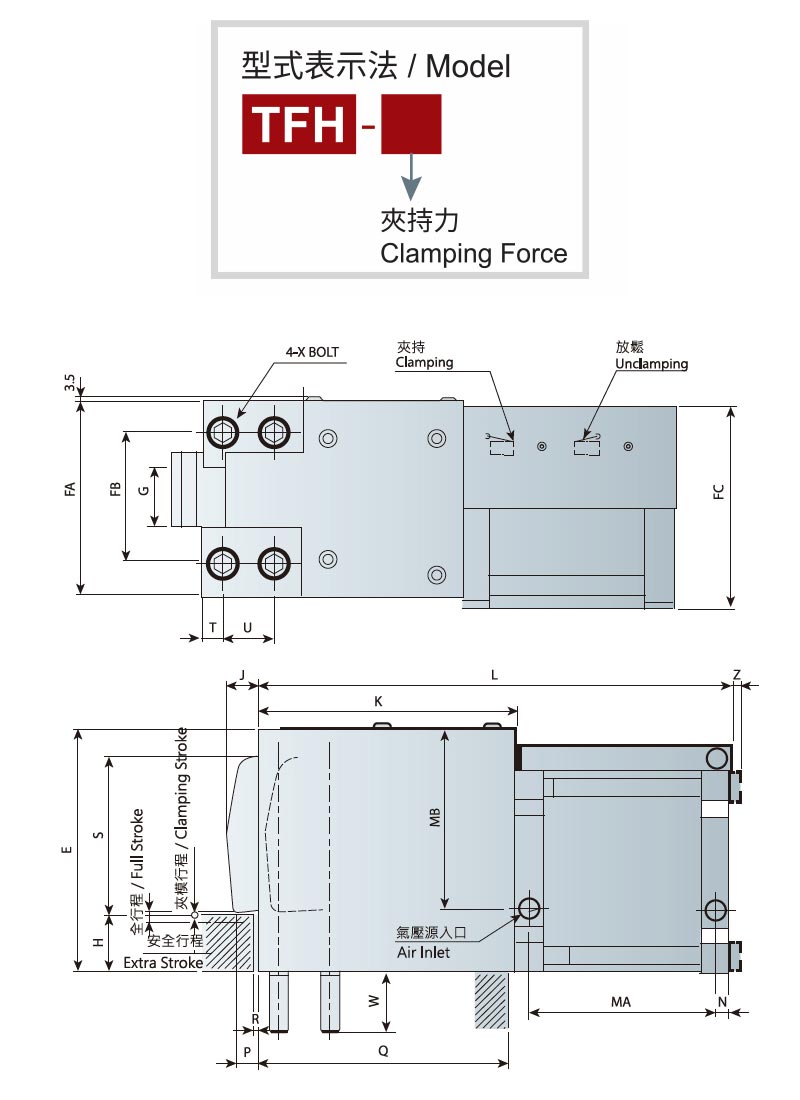

Model |
TFH-2 |
TFH-4 |
TFH-6 |
TFH-10 |
TFH-16 |
TFH-25 |
TFH-40 |
|
Clamping Farce |
24.5 |
39.2 |
61.7 |
98 |
157 |
245 |
352.8 |
|
Fixed Pressure (KN) |
Air Pressurea 0.39Mpa |
24.5 |
39.2 |
61.7 |
98 |
157 |
245 |
352.8 |
Air Pressure 0Mpa |
7.8 |
11.8 |
17.6 |
26.5 |
40.9 |
65 |
93 |
|
Clamping Force (KN) |
Air Pressure 0.49Mpa |
19.3 |
31.4 |
48 |
75.5 |
124 |
190 |
275 |
Air Pressure 0.39Mpa |
16.7 |
26.5 |
41.2 |
63.7 |
104 |
160 |
245 |
|
Air Pressure 0Mpa |
4.9 |
6.9 |
9.8 |
14.7 |
23.5 |
35 |
50 |
|
Full Stroke (mm) |
2.1 |
2.3 |
2.6 |
2.8 |
3 |
3.3 |
4 |
|
Clamping Stroke (mm) |
1 |
1.1 |
1.2 |
1.2 |
1.2 |
1.3 |
2 |
|
Extra Stroke (mm) |
1.1 |
1.2 |
1.4 |
1.6 |
1.8 |
2 |
2 |
|
Cylinder capacity (cm3) |
Clamping |
144 |
259 |
444 |
773 |
1334 |
2468 |
2669 |
Loosen |
135 |
244 |
416 |
729 |
1262 |
2346 |
2459 |
|
Pressure (Mpa) |
Standard Air Pressure |
0.49 |
||||||
Min. Air Pressure |
0.39 |
|||||||
Working Temperature |
70°C |
|||||||
Frequency |
20/day |
Model |
TFH-2 |
TFH-4 |
TFH-6 |
TFH-10 |
TFH-16 |
TFH-25 |
TFH-40 |
E |
86 |
105 |
126 |
156 |
182 |
227 |
247 |
FA |
72 |
90 |
110 |
135 |
142 |
170 |
200 |
FB |
50 |
62 |
76 |
95 |
104 |
130 |
146 |
FC |
75 |
105 |
126 |
130 |
160 |
190 |
210 |
G |
25 |
30 |
37 |
48 |
55 |
65 |
81 |
J |
13 |
15.5 |
17.5 |
20 |
23 |
26 |
25 |
K |
101 |
118 |
140.5 |
164.5 |
203 |
253 |
255 |
L |
196 |
221 |
254 |
299.5 |
355 |
435 |
437 |
MA |
83 |
91 |
101.5 |
119 |
128 |
158 |
145 |
MB |
68 |
83 |
100 |
115.5 |
132 |
167 |
167 |
N |
6 |
6 |
6.5 |
8.5 |
12 |
12 |
25 |
P |
7.5 |
8.8 |
9.9 |
11 |
13 |
17 |
16 |
Min.Q |
85 |
62 |
75 |
163.5 |
203 |
245 |
255 |
R |
2 |
2 |
3 |
3 |
5 |
5 |
5 |
S |
48.5 |
66.5 |
59 |
98.5 |
132 |
125.5 |
133.5 |
T |
11 |
14 |
17 |
13 |
17 |
20 |
27 |
U |
- |
- |
- |
32.5 |
40 |
50 |
60 |
W |
22 |
27 |
33 |
36 |
30 |
37 |
37 |
X |
M12 |
M16 |
M20 |
M12 |
M20 |
M24 |
M30 |
Z |
- |
- |
- |
6 |
6 |
10 |
10 |
Mold thickness |
25±0.3 |
30±0.3 |
35±0.3 |
40±0.3 |
40±0.3 |
50±0.3 |
50±0.3 |
Air Inlet |
1/8 |
1/8 |
1/8 |
1/4 |
1/4 |
1/4 |
1/4 |
