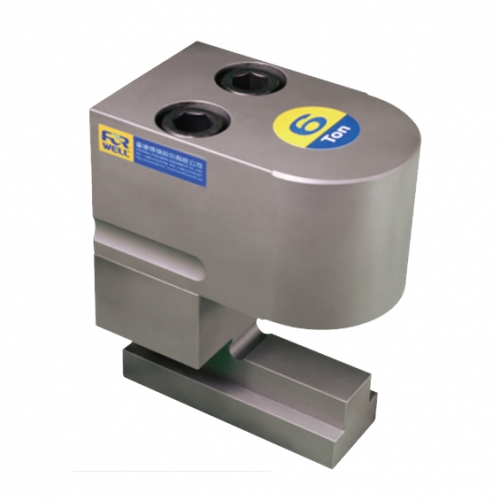

TD DIE CLAMP

Classification : Additional Products

FORWELL PRECISION MACHINERY CO., LTD.

FORWELL PRECISION MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-8345196
Fax: 886-4-8345197
Contact Person: James Hsiao

Model

Unit

TD-2

TD-4

TD-6

TD-10

clamping Force (at 250 kg/cm²)

tons

2

4

6.3

10

Full Stroke (X)

mm

13

15

15

20

Clamping Stroke (Y)

mm

2

2

2

3

Extra Stroke (Z)

mm

5

5

5

5

Cylinder Capacity st Full Stroke

cc

12.5

30

42.5

89

Mold Edge Thickness Tolerance

mm

±3

±4

±4

±6










*Extra stroke is the difference between full stroke and clamping stroke with extra space allowed for safe operation.

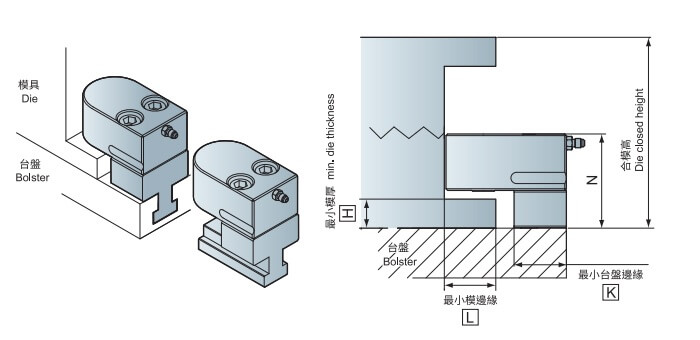

Model

MIN. H

MIN. L

MIN. K

TD-2

15

38.5

50

TD-4

24

54

58

TD-6

29

59

63

TD-10

29

72

70








*Notice if ”N ”size is suitable for the die in closed condition.



Model

E

F

G

I

K

M

O

MIN. N

MIN. A

MIN. C

A

B

C

D

Power Unit

TD-2

107

57

17

30

50

102

61

F+25

12.5

9.5

22

37

16

24

FP6308U

TD-4

130

63

28

40

58

120

80

F+35

15

12

22

37

16

24

FP1014U

TD-6

145

68

28

45

63

130

90

F+40

19

14

28

48

20

28

TD-10

165

92.5

39

52.5

70

145

105

F+45

23

16.5

28

48

20

28

* Before purchase, please verify mold edge thickness (h) and T-Slot(A.B.C.D) has standard or special dimensions.
