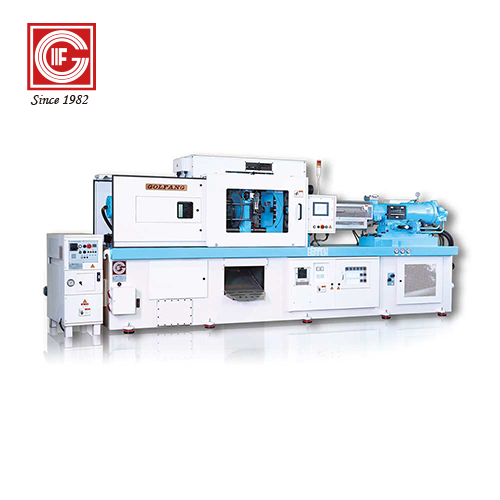

GF/ISB series is different from the ordinary Single Stage Blow Molding Machine, which have adopted the world's most advanced "single-stage injection stretch blow" molding technology. One single machine is able to achieve high quality and efficient productivity. Compared with two-stage PET machines, GF/ISB possesses several advantages which include:
- Energy savings (low power consumption)
- Facility space savings.
- Lower risk on the mold development and testing with single-machine purchase.
- Low mold cost (a viable solution to the market's product-variety demand)
- Great suitability for small-capacity and fine container production.
- Competitive advantages over the competition for orders.
- The machine equips the unique device of Vertical Rotary Disc to transfer the preform from one station to another in an upright position. (Patent)
- The mold design adopts the method of common mold base. Only by changing a few mold parts, the product's shape, weight, or even the length can be changed. It lowers the cost for new mold development, saves time for mold alignment, eases the technical demand for mold changeover, and particularly suits the trend towards high- variety and low-quantity packaging.
- The use of interchangeable insert mold parts simplifies the mold changeover and repair, reduces the maintenance cost, and prolongs the lifetime of the mold.
- The utilization of horizontal lock pins ensures precise positioning of the mold during the molding process. (Patent)
- The valve-gate hot-runner system is designed with special anti-leak device.

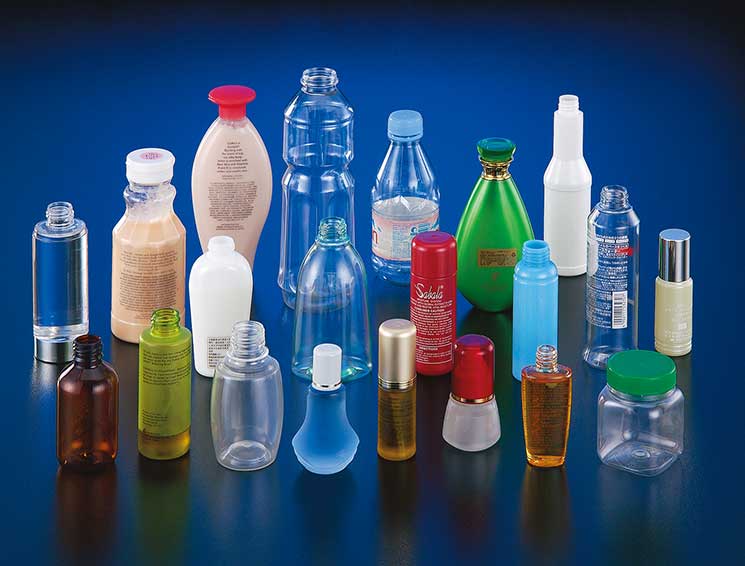

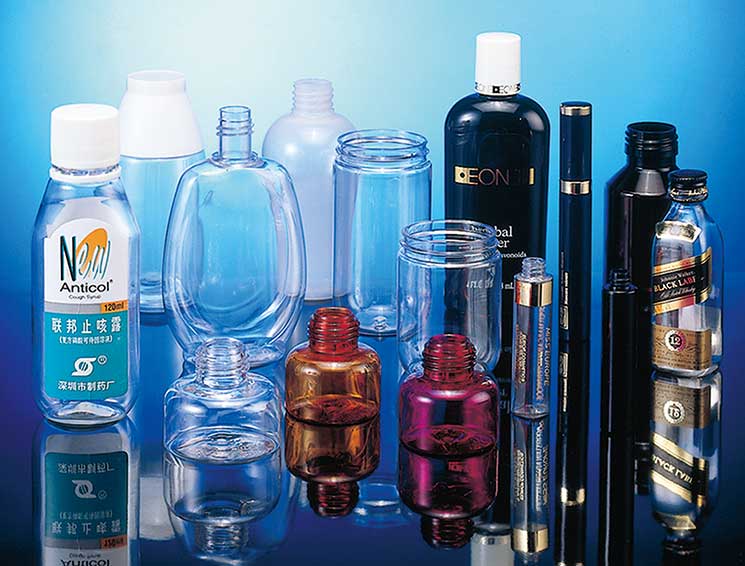

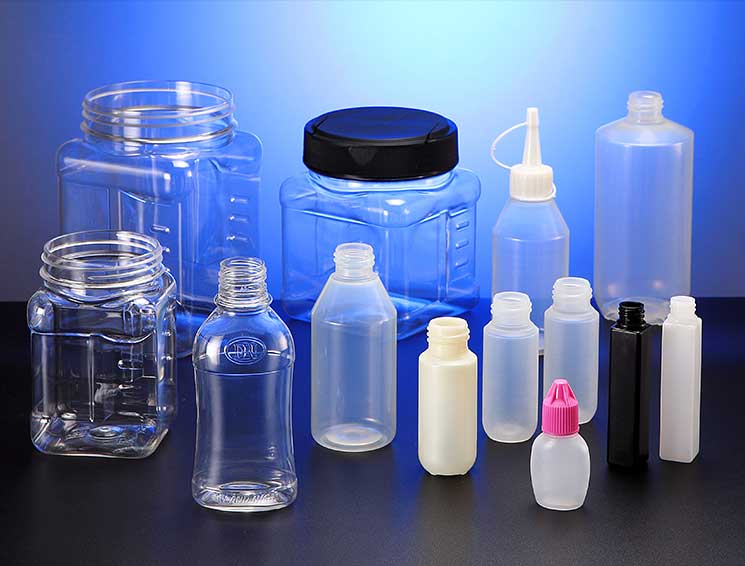

- The machine is ideal for the manufacture of fine quality cosmetic containers, medicine bottles,intravenous drip bottles, detergent containers, beverage bottles, baby bottles, sauce bottles, etc.,intravenous drip bottles, detergent containers, beverage bottles, baby bottles, sauce bottles, etc.
- Various resin options include PET, PP, PC and PES.
APPLICATION:

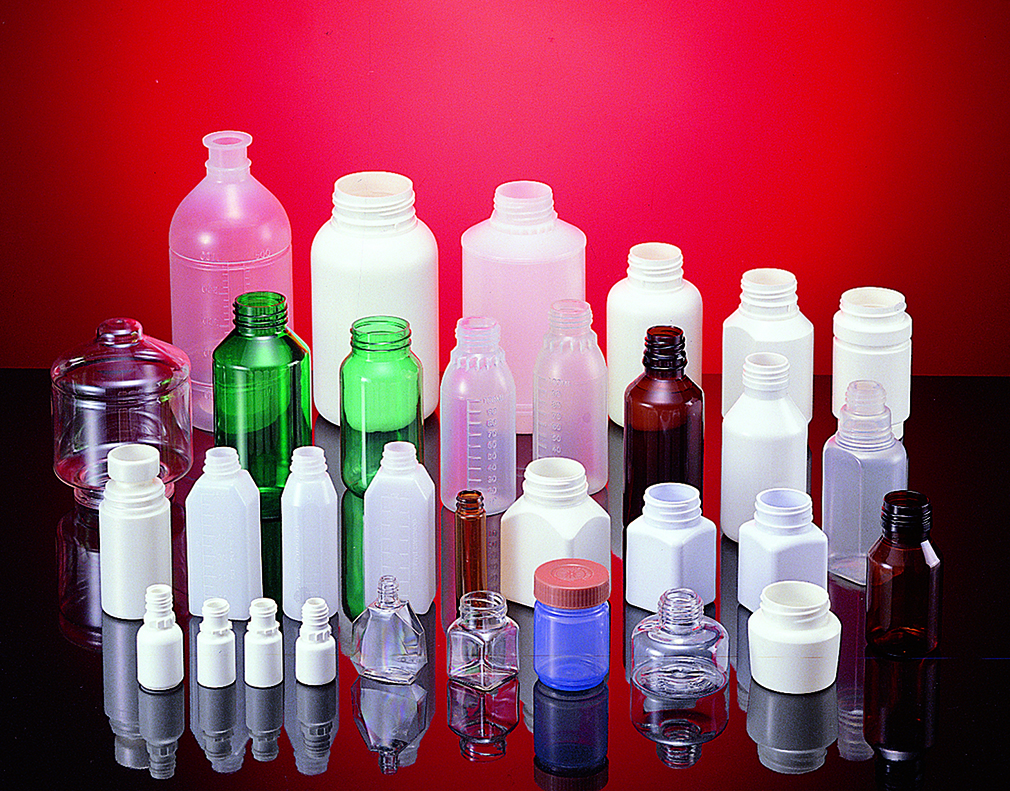

PP/PE/PET Medical containers

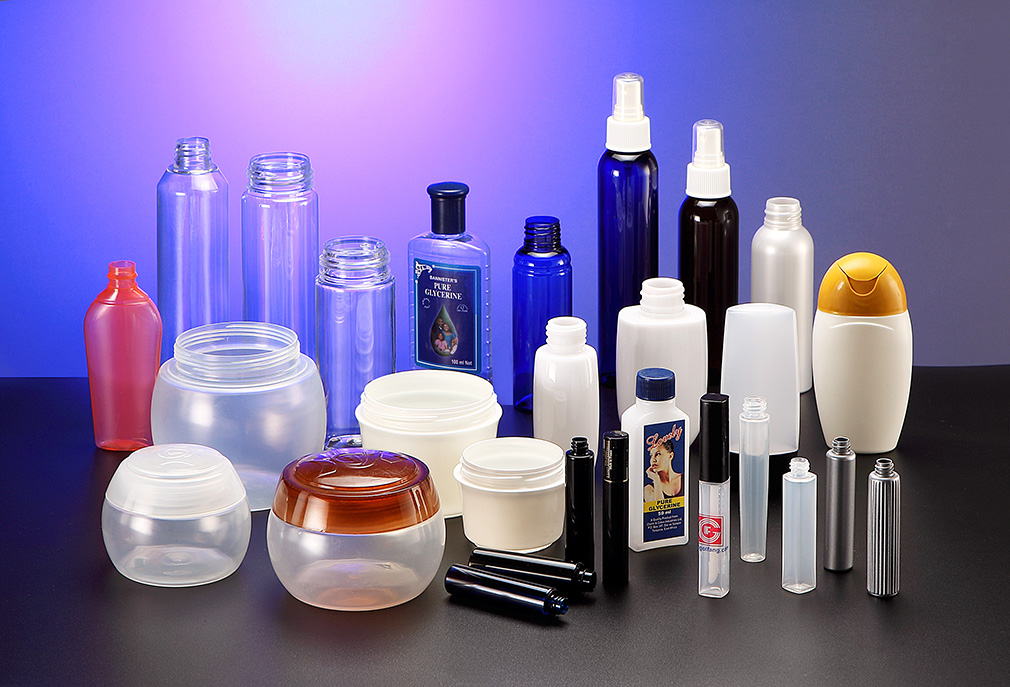

PET/PS/PP/PE Cosmetic containers
PET Others bottle
PET Others bottle
PET/PP/PE Others bottle
Model No. | UNIT | GF/ISB-80 | GF/ISB-100 | GF/ISB-130 | GF/ISB-220 |
Diameter of the screw | mm | 42 | 50 | 55 | 55/60 |
Injection capacity | cm3 | 150 | 300 | 365 | 365/430 |
Heater | kW | 8.8+5.5 | 16.1+7 | 16.1+10.5 | 16.1+12.2 |
Clamping force | Tons | 60 | 100 | 130/170 | 220 |
Pump motor | HP | 30 | 40 | 40 | 40/50 |
Total dimension | L.W.H. | 5.6*1.7*2.2 | 6.3*1.8*2.4 | 6.3*2*2.6 | 6.3*2.1*2.7 |
Machine weight | Tons | 12 | 14 | 16 | 20 |
Air Pressure Compressor | Bar | 35 | 35 | 35 | 35 |
Power Supply | Kw | 30 | 45 | 60 | 60/70 |
Model No. | Cavity | Max. Thread Dia. | Max. Dia. | Max. Height | Max. Weight |
GF/ISB-80 | 2 | 60 | 80 | 200 | 40 |
GF/ISB-80 | 4 | 35 | 65 | 200 | 20 |
GF/ISB-100 | 2 | 65 | 110 | 220 | 60 |
GF/ISB-100 | 4 | 45 | 90 | 220 | 30 |
GF/ISB-100 | 6 | 32 | 55 | 220 | 20 |
GF/ISB-130 | 4 | 66 | 110 | 220 | 70 |
GF/ISB-130 | 6 | 50 | 90 | 220 | 46 |
GF/ISB-130 | 8 | 20 | 70 | 120 | 35 |
GF/ISB-130 | 10 | 28 | 55 | 120 | 28 |
GF/ISB-220 | 4 | 92 | 110 | 220 | 70 |
GF/ISB-220 | 6 | 65 | 100 | 220 | 46 |
GF/ISB-220 | 8 | 50 | 90 | 220 | 35 |
GF/ISB-220 | 10 | 45 | 70 | 150 | 28 |
GF/ISB-220 | 12 | 32 | 60 | 120 | 23 |
GF/ISB-220 | 14 | 28 | 50 | 120 | 20 |
