Servo Motor Driven Perforating Bag Making Machine

Servo Motor Driven Perforating Bag Making Machine 1

Servo Motor Driven Perforating Bag Making Machine 2

Servo Motor Driven Perforating Bag Making Machine 3

Classification : Bag on Roll Bag Making Machine

SING SIANG MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-6-356-3297

Fax: 886-6-356-7267

Contact Person: Angela Yang

Inquiry Now

1. Equipped with product counter. Once the set bag quantity is reached, the machine stops automatically and sounds an alarm.
2. Uses sensors to control feeding speed and ensure stability.

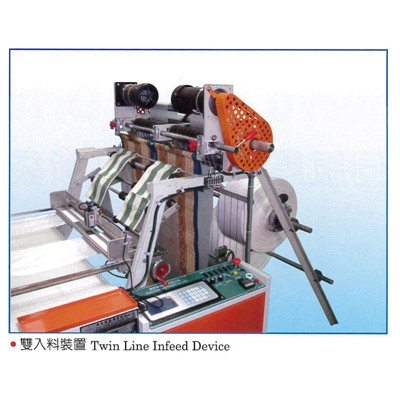

3. Double line production.
4. Adjustable taking up speed for making products neat and beautiful.
5. Automatic stopping when it is reminder line is break.

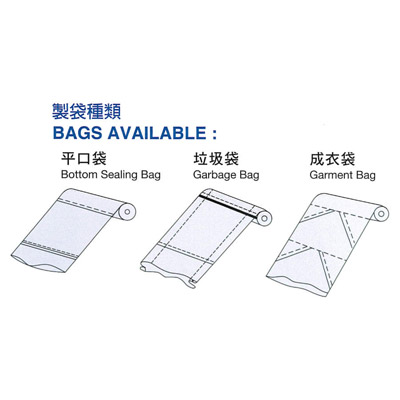

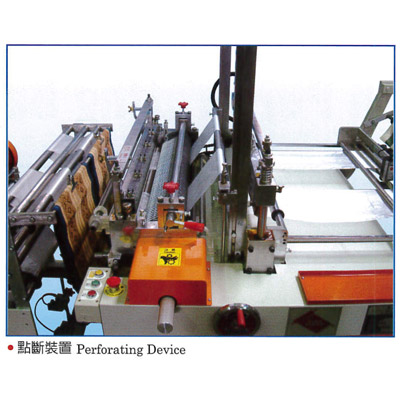

6. This machine can be used to perforate rolled bags, and can be replaced with bottom sealing bag and garment bag for optional.

Model	SHPC-20	SHPC-24	SHPC-30	SHPC-36	SHPC-42
Output Cycle/min	Max 120	Max 120	Max 120	Max 90	Max 90
Rewind Width	400 m/m or 200 m/m x 2	500 m/m or 250 m/m x 2	600 m/m or 300 m/m x 2	800 m/m or 400 m/m x 2	1000 m/m or 500 m/m x 2
Rewind Length	Max 1000 m/m	Max 1000 m/m	Max 1200 m/m	Max 1200 m/m	Max 1200 m/m
Film Thickness	0.01 ~0.06 m/m	0.01 ~0.06 m/m	0.01 ~0.06 m/m	0.01 ~0.06 m/m	0.01 ~0.06 m/m
Main Motor	2H4P	2H4P	2H4P	2H4P	2H4P
Power Consumption	4.0 KW	4.2 KW	4.5 KW	5.7 KW	6.2 KW
Machine Dimension (LxWxH))	3630 x 1450 x 1650	3630 x 1550 x 1650	3630 x 1700 x 1650	3630 x 1855 x 1650	3630 x 2010 x 1650
Machine Weight	1100 kg	1200 kg	1300 kg	1400 kg	1500 kg
Gross Weight	1300 kg	1450 kg	1600 kg	1750 kg	1900 kg
