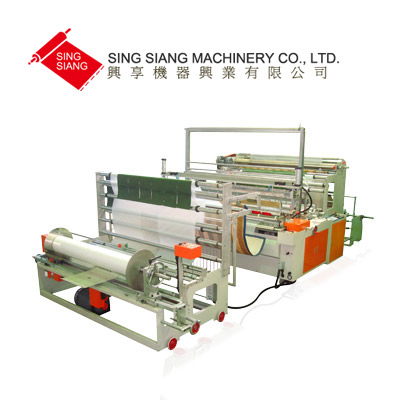

Servo Motor Driven Perforating Bag Making Machine with Automatic Rewinding Module - Double Fold

Classification : Bag on Roll Bag Making Machine
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang

1. Servo Motor Driven, Efficient mechanical structure From film to final bag, one process flow.

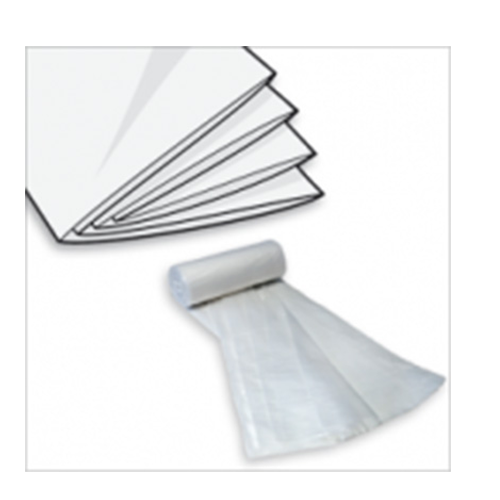

2. Unique designed Multi-Functional Folding Device can fold "M" Shape bags.
3. Adjustable Multi-Functional Folding Device can folding any size of bag with out changing the rack.
4. This can produce Coreless Rolls.
5. User-friendly Control Panel, easy to understand easy to operate.
6. Digital control for production length adjusting, precise and less wastage.
7. Simple design, assemble precisely, durable, and easy for maintaining.
8. Easy operating, Pleasant cutting and sealing, with high firmness and no scratch.
9. Real time printing tracing control for accurate registration, when printing error occurred machine will stop automatically.
10. High production efficiency to save man power and time.

Optional Accessories:
1. Perforating T-Shirt Bag Punching Device.
2. Punching Device.
3. Manual Rewinding Module.


Model SHPF-42 SHPF-50
Output Cycle / min 50 Bags / min 40 Bags / min
Folding Width Max 940 m/m Max 1050 m/m
Bag Length Max 1100 m/m Max 1200 m/m
Servo Motor One Set
Main Motor 2H4P 2H4P
Inverter 3 HP 3 HP
Heater 3 KW 4 KW
Power Consumption 8 KW 9 KW
Machine Dimension (LxWxH) 3324 x 1750 x 2095
1476 x 1700 x 1210
3324 x 1930 x 2095
1476 x 1700 x 1210
Machine Weight 2100 kg 2300 kg
Gross Weight 2400 kg 2600 kg
