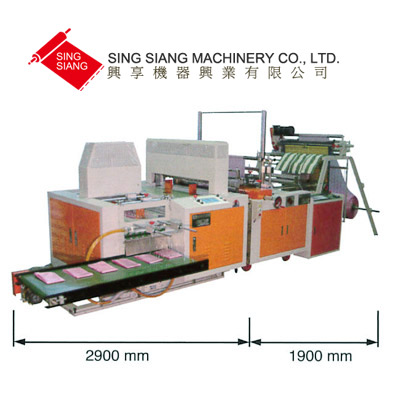

Servo Motor Driven Garbage Bag Making & Folding Machine

Classification : Folding Machine

SING SIANG MACHINERY CO., LTD.

SING SIANG MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
1. Servo driven rolls, smooth bag delivery and precise cut off.
2. With this sealing & cutting machine, each sheet folds automatically. It saves time and labor.
3. Number of sheet to be processed can be set with Auto-Digital Counter.

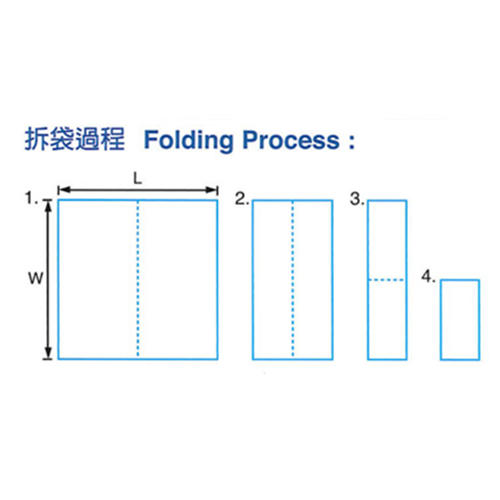

4. Depending on width, bags can be folded in three or four to speed up packaging.
5. Easy to adjust using pneumatic controls with electromagnet.

Model SHGF30 SHGF36 SHGF42 SHGF50 SHGF60
Width of Folding Bag
28 34 40 48 58
Length of Folding Bag 40" 40" 55" 55" 55"
Thickness (mm) 0.01~0.2 0.01~0.2 0.01~0.2 0.01~0.2 0.01~0.2
Tolerance Length + 1 mm + 1 mm + 1 mm + 1 mm + 1 mm
Production Per Min. (pc) 60 50 40 40 30
Main Body Driving Motor (AC) 2 HP 2 HP 2 HP 2 HP 2 HP
Sub Body Driving Motor(AC) 1 HP 1 HP 1 HP 1 HP 1 HP
Power Required 5.5 kw 6.0 kw 7.0 kw 8.0 kw 9.0 kw
Pneumatic Pressure 5 kg ~ 7 kg 5 kg ~ 7 kg 5 kg ~ 7 kg 5 kg ~ 7 kg 5 kg ~ 7 kg
Dimension LxWxH (cm) A 1900 x1428 x1440
B 2900 x 1428 x1300
1900 x 1570 x 1650
2900 x1570 x1300
1900 x 1730 x 1650
2900 x1730 x1300
1900 x 1930 x 1650
2900 x1930 x1300
1900 x 2190 x 1650
2900 x2190 x1650
Machine Weight (kg) 1400 1650 1900 2150 2400
Measurement LxWxH (cm) A 2100 x1600 x1600
B 3100 x 1600 x1500
2100 x1800 x1800
3100 x 1800 x1800
2100 x1900 x1800
3100 x 1900 x1800
2100 x2100 x1800
3100 x 2100 x1800
2100 x2400 x1800
3100 x 2100 x1800
Gross Weight (kg) 1700 1950 2250 2550 2850
