PP Blown Film Machine

Classification : Blown Film Extrusion Machine

CHYI YANG INDUSTRIAL CO., LTD.

CHYI YANG INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-3-328-8686
Fax: 886-3-328-3737
Contact Person: Renee Kuo

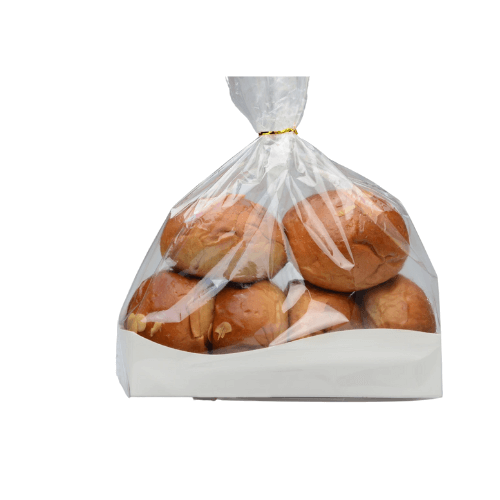

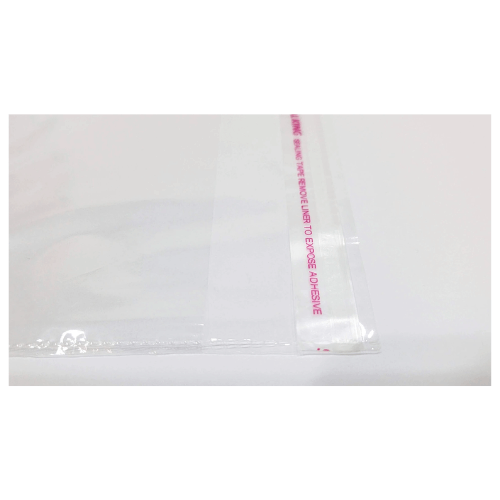

  • Water cooling system makes glossier and more transparent PP film for food or garment packing.
  • Unique screw provides high production for a long period life and holds film uniformly steady.
  • Dry chamber provides a fast water removal, for food package purpose.
  • Optional tension control for winder provides good tension film in rolls, used in food packaging & printing.
  • We didn’t show all our models, please don’t hesitate tocontact us for bigger extruders.

MODEL NO.

PP-45H

PP-55H

PP-65H

PP-75H

Screw Diameter (mm)

45

55

65

75

Output (Kg/hr) *

15-45

20-60

25-80

35-90

Roller Width (mm)

500

750

900

1100

Power Required (Kw)

25

34

40

50

Drive Motor (HP)

15

20

30

40

Die Diameter (mm)

100 or 180

150 or 250

150 or 300

150 or 350

Machine Dimension (m)

5.2 x 1.5 x 3.7

5.8 x 1.6 x 3.7

6.2 x 1.8 x 5.1

7 x 2.2 x 5.1


*Output depending on film width, thickness, die size, raw material.
*For more details specification, special requirements & quotation, please kindly contact us.
