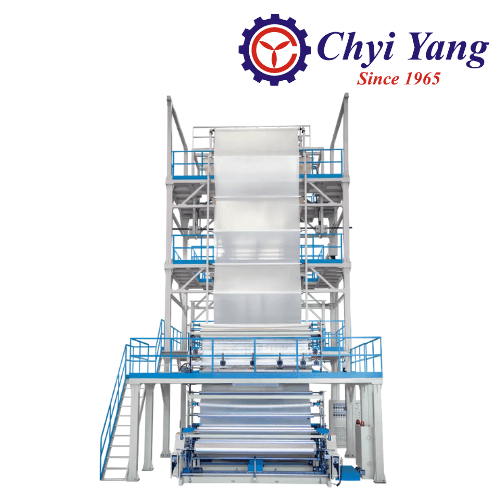

4.2M Wide 2-Layer Co-Extrusion Blown Film Machine

Classification : ABA/2/3/4/5/7-LAYER CO-EXTRUSION

Applications: Agriculture Packaging Recycling Materials Agricultural Films PE Agricultural Films Stretch Hood Film Stretch Wraps PE Films

CHYI YANG INDUSTRIAL CO., LTD.

Country: Taiwan

Phone: 886-3-328-8686

Fax: 886-3-328-3737

Contact Person: Renee Kuo

Inquiry Now

The extruder size configuration can be customized based on production needs, including asymmetrical configurations such as 90+120 or other combinations.
Application of 2-layer film: Agricultural Film, Mulch Film, Laminating Film, Courier Bag, Frozen Package, etc.

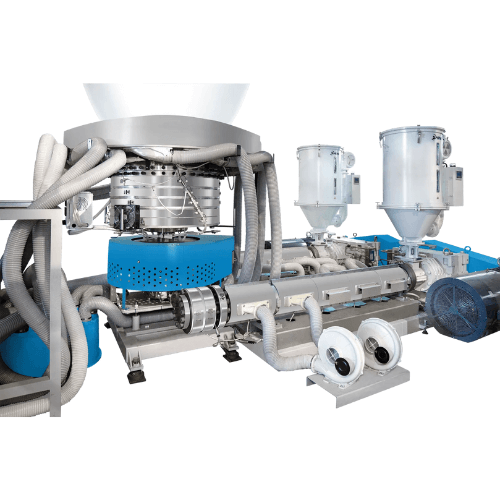

Equipped with two independent gearboxes, dual motors, two extruders, and two separate control systems.
The fully automatic winder enables automatic roll change and cutting, improving automation and saving operator time.
The rotary die ensures more uniform film thickness.
Maximum film width reaches up to 4.2 meters, and when slit and opened on one side, it can reach up to 8.4 meters.
The specifications listed below do not represent all available models. Please contact us for larger blown film machines.

MODEL NO.	MDP-100	MDP-120
Screw Diameter (mm)	100 x 2 sets	120 x 2 sets
Roller Width (mm)	3,200	4,200
Output (Kg/h) *	120-400	150-550
Film Thickness (mm)	0.025-0.2	0.025-0.2
Drive Motor (HP)	100 x 2 sets	120 x 2 sets
Die Diameter (mm)	750	1,000
Heating Zone	17 zones	19 zones

Output varies depending on film width, thickness, die size, and raw material properties.
For detailed specifications, special requirements, and formal quotations, plea se contact us. The specifications listed above are for reference only, with final specifications confirmed in the official quotation.
