Masks Horizontal Flow Packaging Machine

Classification : Mask Making Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

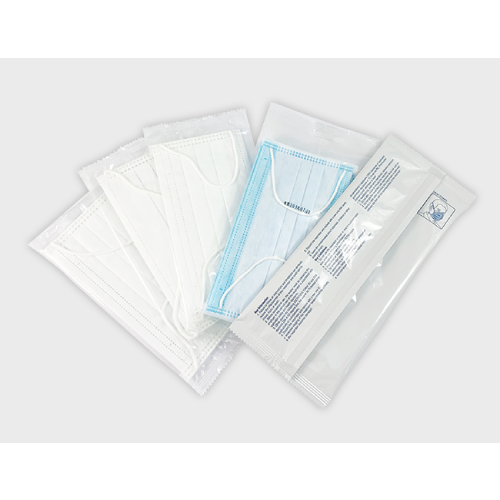

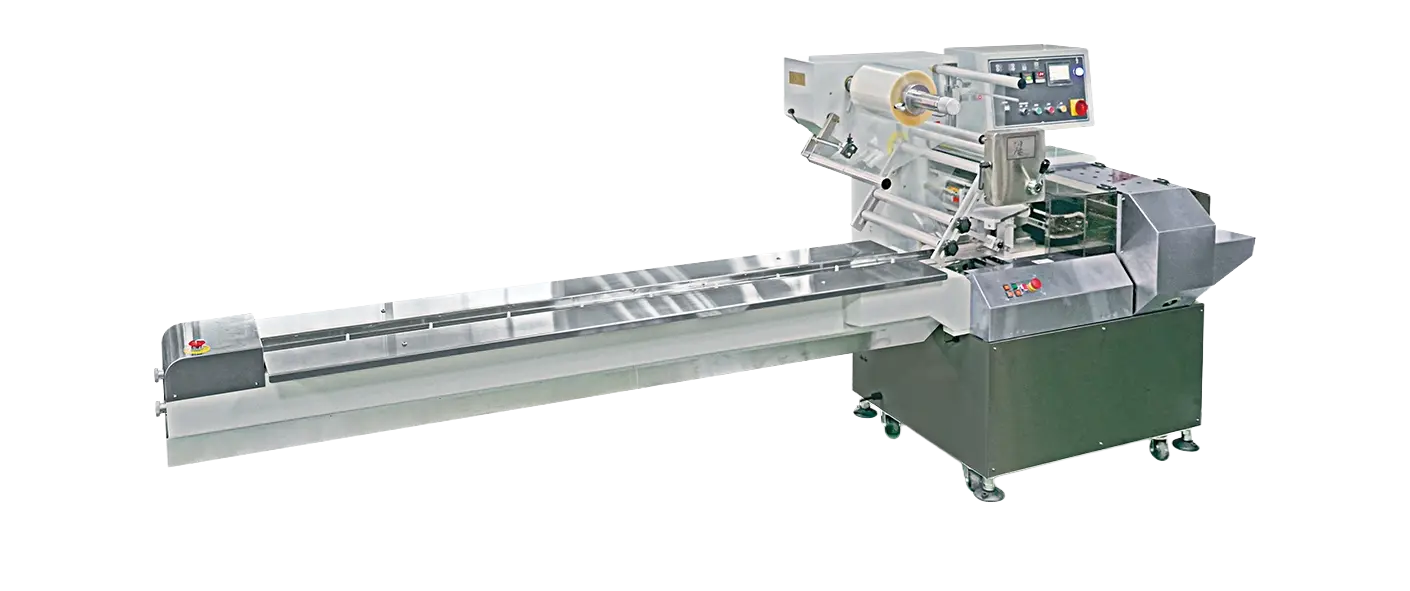

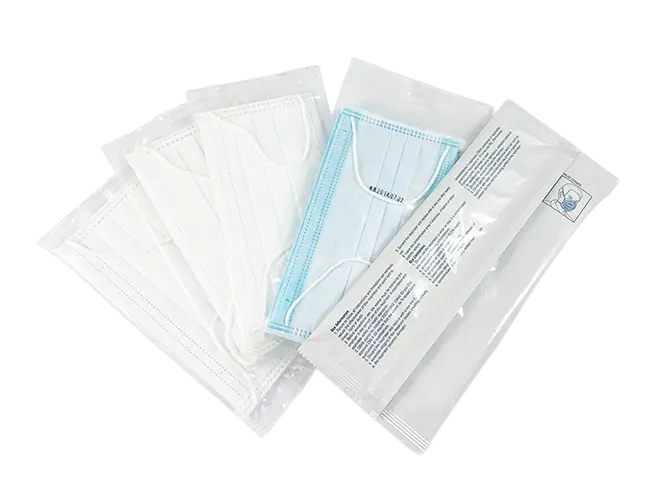

The MGA-MSK-P is a horizontal flow packaging machine for wrapping finished masks, sealing them into bags formed from OPP, OPP/PE, or OPP/CPP packing film. It handles film thickness from 20 to 60 micron and produces bags from 90 to 350 mm in length, up to a maximum width of 450 mm.

The machine accommodates packed products from 20 to 90 mm in width, running at 20 to 95 cycles per minute. It draws 4.5 kw of required power within a footprint of 3,880 (L) x 940 (W) x 1,530 (H) mm.

Model	MGA-MSK-P
Packing Material	OPP, OPP/PE, OPP/CPP
Thickness of Film	20 - 60 micron
Bag Length	90 - 350 mm
Max. Width	450 mm
Packed Product Width Range	20 - 90 mm
Output	20 - 95 cycle/min
Machine Dimension	3,880 (L) × 940 (W) × 1,530 (H) mm
Machine Weight	800 kg
Required Power	4.5 kw
