Name: Hot Needle Perforation Machine
Brand: MING JILEE ENTERPRISE CO., LTD.

Classification : Bag Converting Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

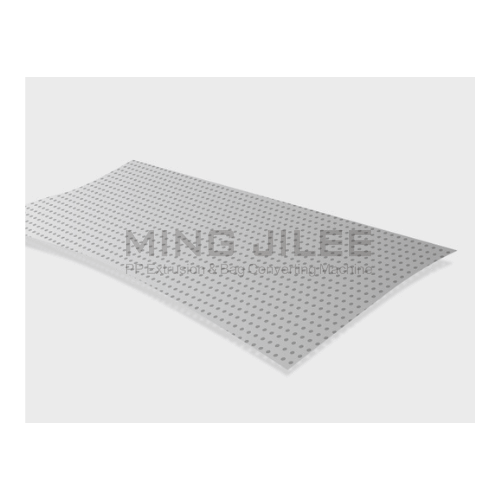

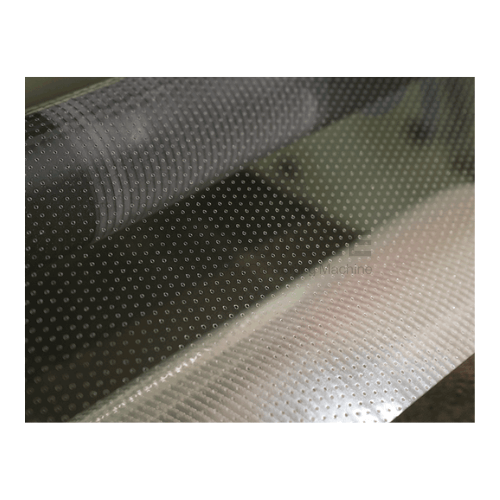

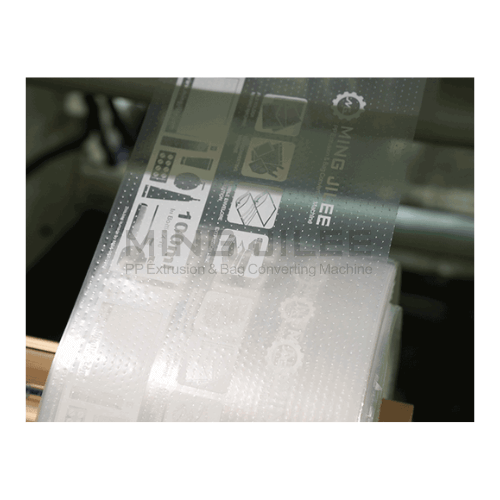

The MGR-HPR-1000 is Ming Jilee's hot needle perforation machine, designed to perforate BOPP, CPP, and PE film. The hot needle pins are imported from Europe, and the perforating system runs as a closed system that keeps hot air energy within the working area, keeping heating consumption down.

A high-precision edge position controller and fully automatic tension controller keep film quality stable during operation, and pin design is customized down to a minimum pitch of 2 × 2 mm. For thin PE material, the heating system can be switched off so the needles mark small holes instead of perforating with heat. A special holding shaft lets operators remove finished rolls easily once a roll is complete.

Model	MGR-HPR-1000
Unwind width	300 - 1000 mm
Unwind diameter	Max. 600 mm
Rewind width	300 - 1000 mm
Rewind diameter	600 mm (Max.)
Pin design	customized (min pitch is 2 × 2 mm)
Paper core	3”
Machine speed	60 - 130 m/min (depend on material and design)
Slitting function (Max 3 rolls on shaft)
Machine dimension	4,200 (L) × 2,150 (W) × 1,960 (H) mm
Machine weight	4000 kg
Required power	24.5 kw
