Gusset Machine

Classification : Bag Converting Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

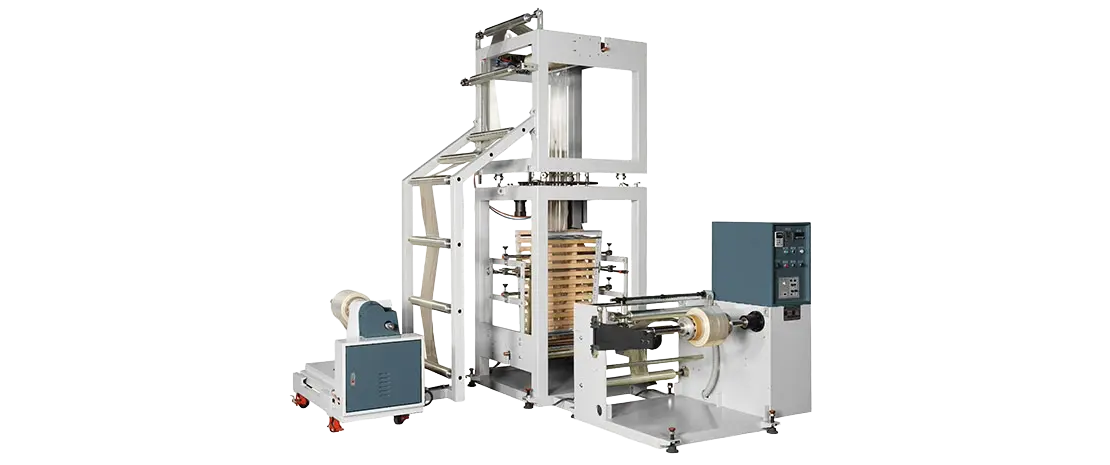

The MGA-71-700 is Ming Jilee's gusset machine, folding side gussets into film for downstream bag production. It uses an automatic EPC system to keep output stable and standardized.

A rewinding unit with automatic tension control maintains stable product output, while an automatic meter counter, automatic speed limit device and static eliminator system round out the line's process control.

General Machine Specifications	MGA-71-700
Max-Cutting Size(W×L)	150~550 mm
Film Thickness(mm )	0.025~0.12 mm
Production per min(PC)	10~80M
Motor	3Hp
Power Required	3.5Kw
N.W.	1200Kg
G.W.	1500Kg
