Grape Bag Holes Punching and Zipper Strip Hot Lamination Side Sealing Machine

Classification : Bag Converting Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

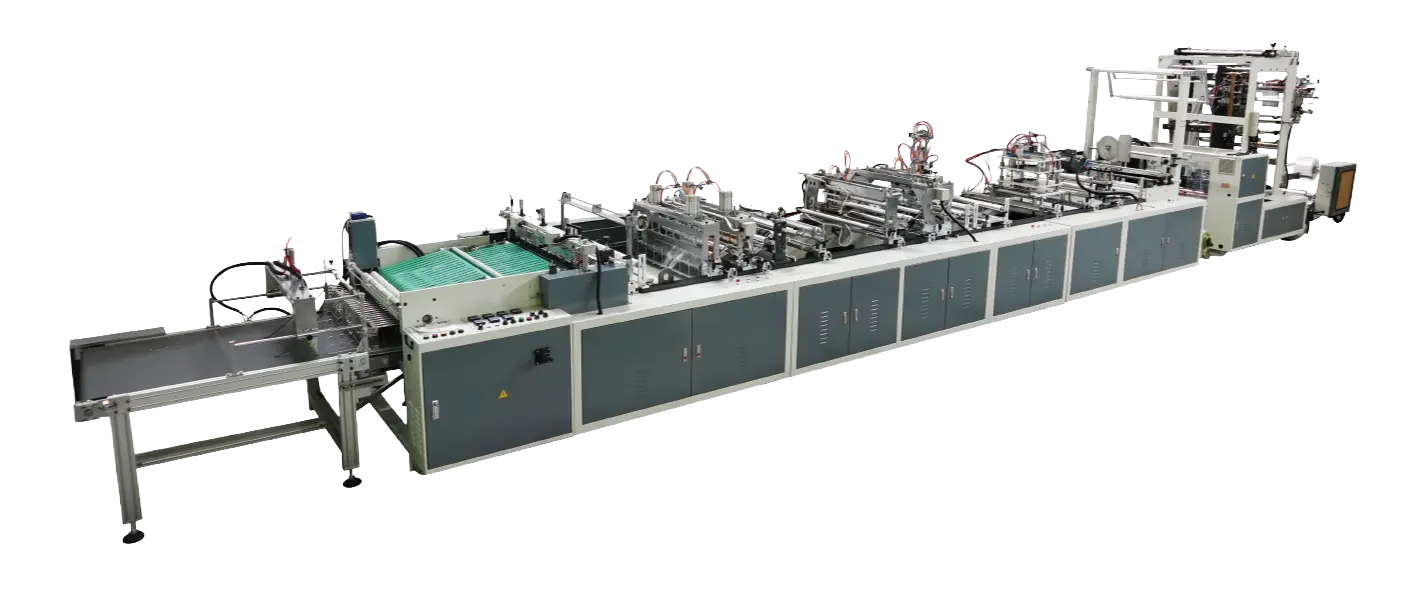

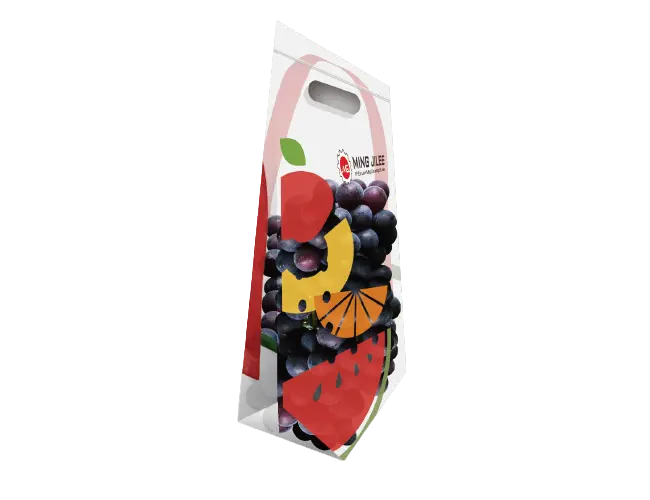

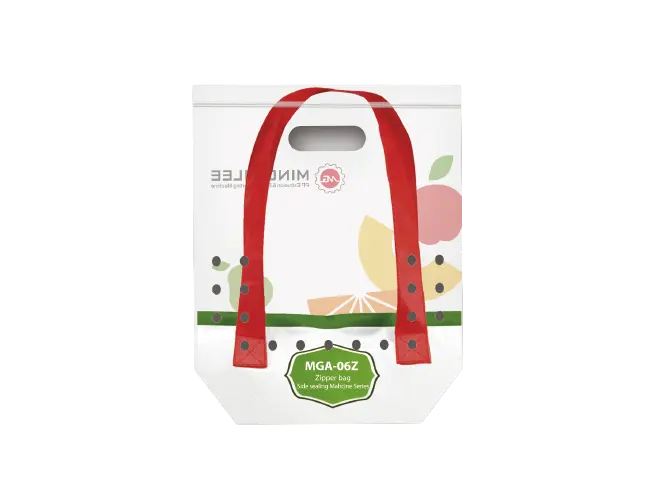

The MGA-06Z-800GP is a grape bag holes punching and zipper strip hot lamination side sealing machine, producing zipper bags with in-line zipper lamination as well as grape and cherry bags with punched holes and a flap bottom. Bag size is controlled by a Japan-made servo motor, and a Taiwan-made PLC controller provides stable operation.

A mark sensor tracks printed material, and the unwinding station uses auto tension control. An individually motor-controlled zipper strip unwinder maintains zipper sealing quality, while an ultrasonic welding station cracks the zipper at the bag edge for clean side-seal cutting. A V heat sealing system forms the flap bottom on grape bags, and a precision hole punching mold station punches holes for grape and cherry bags.

Model	MGA-06Z-800GP
General Machine Specifications
Machine Dimension	12,000 (L) x 2,000 (W) x 2,250 (H)mm
Machine Weight	6,470 kg
Required Power	11 kw
Machine Performance
Feed Material	PP /PE / EVA
Single Layer Film Thickness	0.02 - 0.08 mm
Effective Bag Size Range
a. Standard Zipper Bag	85 - 600 (W) x 150 - 550 (L) mm
b. Grape Bag	85 - 600 (W) x 150 - 320 (L) mm
Output
a. Standard Zipper Bag	40 - 100 pcs /min (depend on size and thickness)
b. Grape Bag	40 - 65 pcs /min (depend on size and thickness)
