PRM-TAIWAN
Classification : Continuous Extrusion Blow Molding Machines
Country:
Phone: 886-6-2532157
Fax: 886-6-2533079
Contact Person: Susan Wei
Inquiry Now

Full Electric Blow Moulding Machine

Quad-head, Double-station

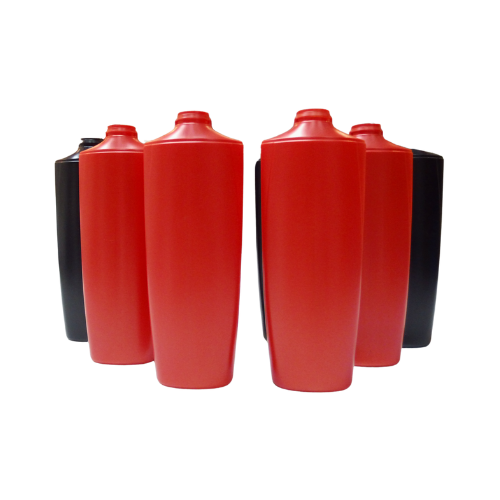

For 200ml-500ml shampoo bottle


Resin

HDPE 5502 grade

Products

500~700ml
NET 38g、Gross 52g

production

2400pcs/hr

Driving motor

CMG 37kW gear reducer motor +AB vector inverter control (75HP)

Extruder

φ65mm,L/D=30,barrier flight design with MADDOCK mixing zone

Output

150kg/hr(max.)

Head design

HDPE Four Head,Torpedo design with double spider support leg

Die lip size

φ62mm (max.)

Oil hydraulic motor

multi-connecting rod with self-lock

Clamping plate ( H x W ) 300x600mm(HxW)
Clamping force Design 140kN(14tons),Operate 100kN(10tons
Clamping stroke 280~425mm,fixed
Mould thickness 280mm,fixed
Carriage shuttle stroke 630mm(max.650mm)
Tonnage pressure
Postcooling NA
Deflash
