Classification : Side Sealing Bag Making Machine
Country: Taiwan
Phone: 886-6-356-3297
Fax: 886-6-356-7267
Contact Person: Angela Yang
1. Automatic positioning when the machine stops for upgrading operation convenience.
2. Uses high precision photocell sensor for high accuracy of pivoting points tracking.
3. If the printing points come out of position, the machine stops automatically, reducing defective product ratio to a minimum.
4. The machine is driven by a variable speed motor allowing for variable speed change.
5. It is quickly accomplished to change bag shapes and size.
6. Choice of various unwinder and rewinder to suit specific bag making requirements.
7. The machine is ruggedly constructed throughout for maximum stability.
8. Clean, elegant and secure sealing effect.
9. Easy to operate.

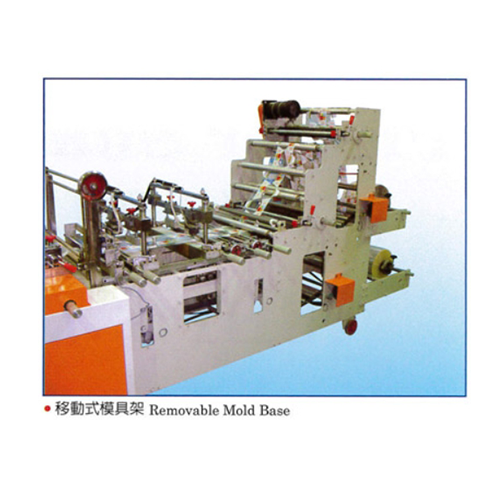

10. It is convenient and quickly accomplished to change mold.

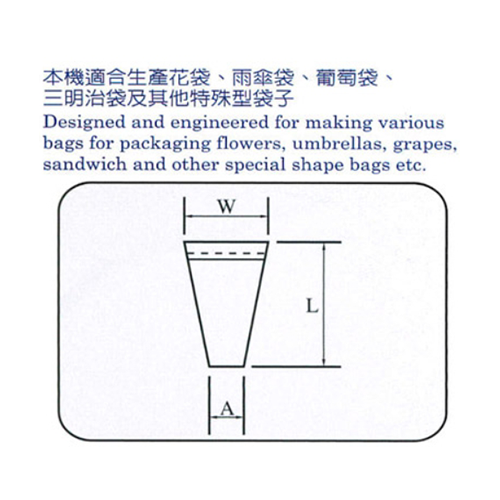

Model | SHFS-24 | SHFS-30 | SHFS-36 |
W Max. | 350 mm | 400 mm | 450 mm |
A Min. | 50 mm | 50 mm | 50 mm |
L Max. | 450 mm | 550 mm | 650 mm |
Model | SHFS-24 | SHFS-30 | SHFS-36 |
Output Cycle / min | Max 60 | Max 50 | Max 40 |
Bag Width | 50 ~ 350 m/m | 50 ~ 400 m/m | 50 ~ 450 m/m |
Bag Length | Max 450 mm | Max 550 mm | Max 650 mm |
Film Thickness | 0.015 ~ 0.08 m/m | 0.015 ~ 0.08 m/m | 0.015 ~ 0.08 m/m |
Main Motor | 2H4P | 2H4P | 2H4P |
Power Consumpton | 4.0 KW | 5.0 KW | 6.0 KW |
Machine Dimension (LxWxH) | 4100 x 1270 x 1710 | 4100 x 1420 x 1710 | 4100 x 1570 x 1710 |
Machine Weight | 1450 kg | 1600 kg | 1750 kg |
Gross Weight | 1700 kg | 1900 kg | 2100 kg |
