DR DIE LIFTER

Classification : Additional Products

FORWELL PRECISION MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-8345196

Fax: 886-4-8345197

Contact Person: James Hsiao

Inquiry Now

Introduction
Specifications

These Spring-Loaded Die Lifters easily slide into different sized T or U-slots on the bolster by adding spacers to the side walls of the Die Lifters. This allows for accurate and easy die positioning as well as quick and easy die removal. The DR Series Die Lifters are available in customizable lengths in increments of 100mm, and are available as either a ball type lifter or roller type lifter.

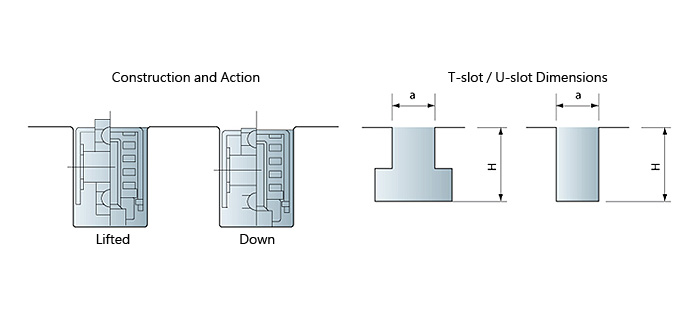

DR Diagram

Model	a	H
DR-22	22	33-43
DR-28	28	45-58

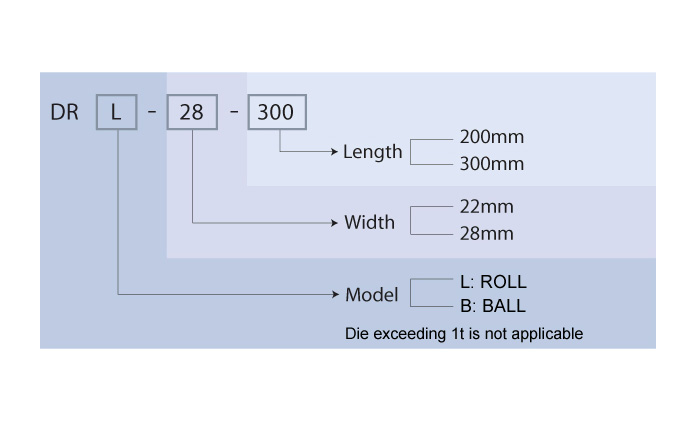

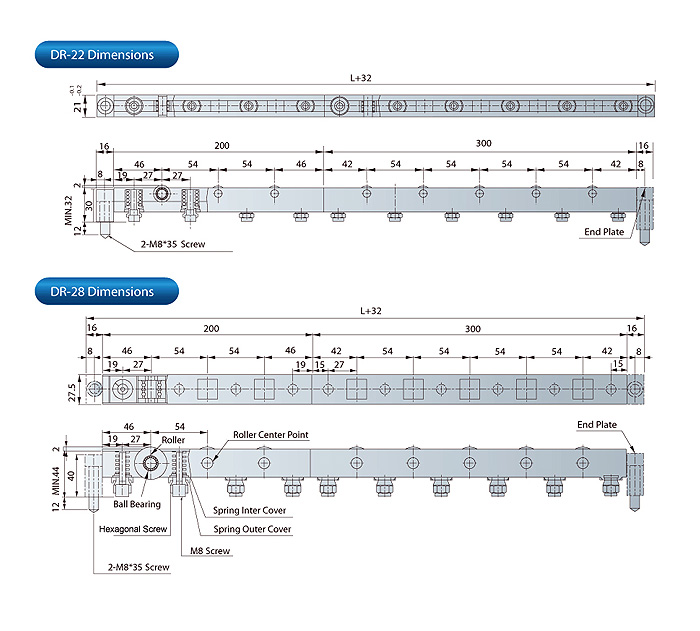

DR Specifications

Basic Model	Width (mm)	Length (mm)	Springs (pcs)	Lift Farce (kgf)
DRL-22-200/DRB22-200	22	200	4	37.5
DRL-22-300/DRB22-300	22	300	6	37.5
DRL-28-200/DRB28-200	28	200	4	75
DRL-28-300/DRB28-300	28	300	6	75

Maximum lift force per line (kgf)

mm kgf Model	200	300	400	500	600	700	800	900	1000
DR-22	150	225	300	375	450	525	600	675	750
DR-28	300	450	600	750	900	1050	1200	1350	1500

Maximum lift for per line (kgf)

mm kgf Model	1100	1200	1300	1400	1500	1600	1700	1800	1900	2000
DR-22	825	900	975	1050	1125	1200	1275	1350	1425	1500
DR-28	1650	1800	1950	2100	2250	2400	2550	2700	2850	3000
