Classification : T-Shirt Bag
Country: Taiwan
Phone: 886-5-2358505
Fax: 886-5-2359463
Contact Person: Angela Lin

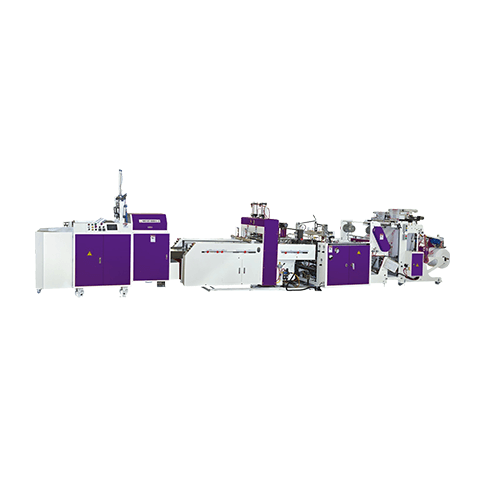

● The machine is especially designed for making T-shirt bags with auto packaging device.
● This machine utilizes two servomotors for sending film,ensuring accuracy of bag length.
● This machine utilizes two servomotors for sending film,ensuring accuracy of bag length.
MODEL | BJABP+PK2 28" | BJABP+PK2 32" | BJABP+PK2 40" |
Max. Cutting Width mm (inch) | 177-304(7"-12")x2 | 203-355(8"-14")x2 | 228-457(9"-18")x2 |
Max. Cutting Length mm (inch) | 304-635(12"-25") | 304-635(12"-25") | 304-635(12"-25") |
Thickness (micron/sheet) | 9-40 | 9-40 | 9-40 |
Length Tolerance (mm) | ±1 | ±1 | ±1 |
Production Rate (pcs/min) | max. 300 | max. 300 | max. 300 |
AC Driving Motor (HP) | 2 | 2 | 2 |
Heater Capacity (kW) | 10.2 | 10.6 | 12.2 |
Power Required (kW) | 23 | 24.4 | 31.7 |
Machine Dimensions (L*W*H cm) | 920x155x200 | 920x165x200 | 920x185x200 |
Machine Weight (kg) | 4400 | 4900 | 5800 |
Packing Measurement | - | - | - |
Package (L*W*H cm) | 300x185x215 | 300x195x215 | 300x215x215 |
Punching (L*W*H cm) | 300x131x208 | 310x141x208 | 310x161x208 |
Main (L*W*H cm) | 195x200x185 | 205x200x185 | 225x200x185 |
Rear Feeding (L*W*H cm) | 230x170x195 | 230x180x195 | 230x200x195 |
Gross Weight (kg) | 5200 | 5900 | 6600 |
