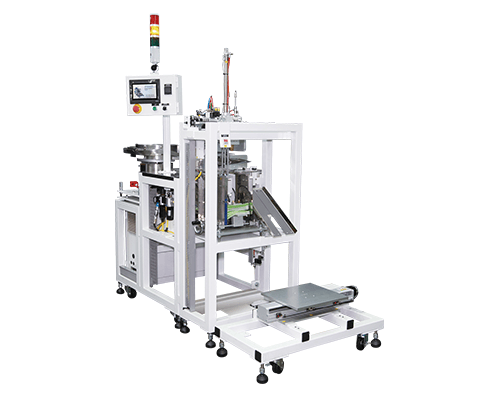

Automatic Degassing Valve Applicator - AVI Series

Automatic Degassing Valve Applicator - AVI Series
Classification : Sealing Machine
DAH BAH MACHINERY INDUSTRIAL INC.
DAH BAH MACHINERY INDUSTRIAL INC.
Country: Taiwan
Phone: 886-4-24832477
Fax: 886-4-24830852
Contact Person: Angela Chi
Inquiry Now
Materials
  • Pre-made pouches with multi layers of polyester and sealant with or without aluminum foil good for large or small size of valves available in the market. E.g. Pacific Bag, Goglio, Wipf.
Feeding Section
  • Stack-type bag compartment out-feed with out of bag detector.
Sealing Section
  • Equipped with valve vibratory feeder.
  • Pneumatic valve sealing and punching tool.
  • Equipped with automatic bag collector.
  • Touch screen operation.
  • Consistent quality, no human error.
  • One operator can look after 2 machines.

AVI Series

Model No. AVI
APPLICABLE MATERIALS Pre-made pouches with multi
layers of polyester and sealant with or without aluminum foil, good for large or small size of valves available in the market. E.g. Pacific Bag, Goglio, Wipf
MAXIMUM BAG SIZE 180 mm width
MINIMUM BAG SIZE 80 mm width with 25 mm side gusset
TYPE OF VALVE Width 22mm, Thickness 3.85mm (Or as specified.)
MAXIMUM VALVE DISTANCE FROM OPEN END OF THE POUCH 185 mm
MINIMUM VALVE DISTANCE FROM SIDE EDGES OF THE POUCH 40 mm
VALVE PUNCHING AND SEALING TOOL As request
MACHINE SPEED 12-15 pcs per minute
MACHINE COLOR White
INSTALLATION INFORMATION
(standard machine) 		POWER SUPPLY As request
OVERALL DIMENSIONS 865W x 1290D x 1800H mm
TOTAL WEIGHT 470 Kg.
