Automatic Sandwich Folding Machine

Classification : Side Sealing Bag Making Machine

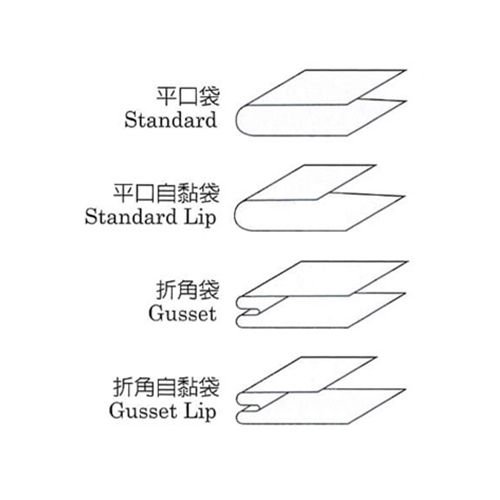

Applications: Packaging Side Seal Bags

SING SIANG MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-6-356-3297

Fax: 886-6-356-7267

Contact Person: Angela Yang

E-catalog Inquiry Now

1. Special for sandwich folding of single sheet OPP. CPP. & PE film.
2. Semi-automatic tension control & powder break on unwinder.

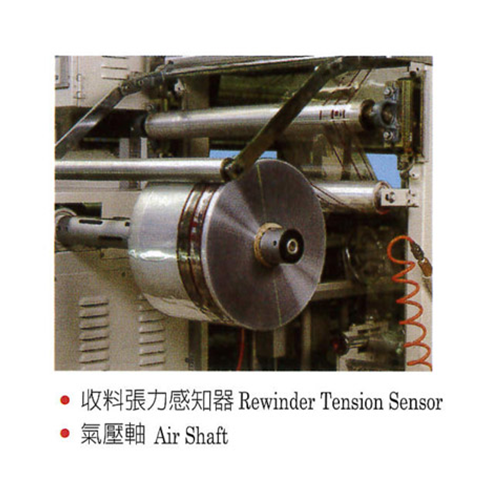

3. Full-automatic tension control (with tension sensor) & powder clutch on rewinder.
4. Pneumatic shiftless unwinder provides convenient, fast material handle.
5. Air shaft on rewinder provides convenient, fast product unload.
6. Edge Position Controller (EPC) for unwinder ensures smooth and neat edge of material.
7. 5 HP AC motor & inverter for variable speed drive.
8. Equipped with length counter & film-less Auto Stop Device.

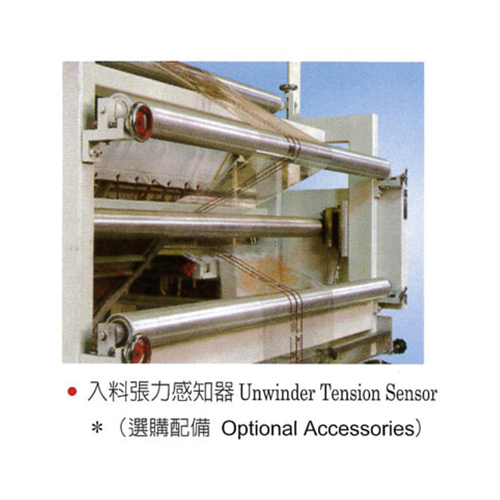

* Optional Accessories : Full-automatic tension control (with tension sensor) on unwinder.

Model	SHSF-1200	SHSF-1500
Speed	40 ~ 150 M	40 ~ 150 M
Film Width	0.1M ~ 1.2M	0.1M ~ 1.5M
Power Consumption	4 KW	4 KW
Machine Dimension (LxWxH)	2.5 x 2.1 x 1.7 M	2.8 x 2.3 x 2 M
Machine Packing (LxWxH)	2.9 x 2.3 x 2.0 M	3.2 x 2.3 x 2.3 M
Machine Weight	1550 kg	1650 kg
Gross Weight	1750 kg	1850 kg
