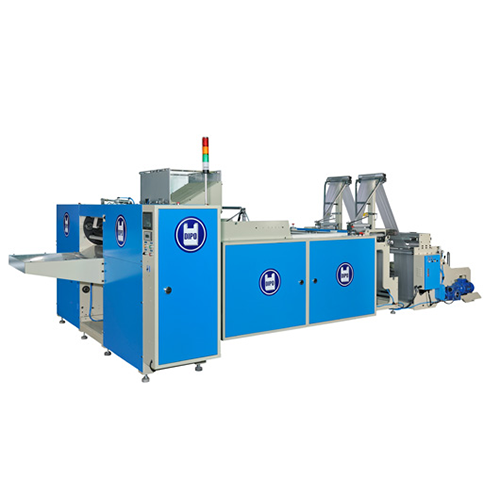

Automatic Bag On Roll Bottom Sealing Machine (With and Without Core)

Automatic Bag On Roll Bottom Sealing Machine (With and Without Core)
Classification : Bag Making Machine
DIPO PLASTIC MACHINERY CO., LTD.
DIPO PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-5-221-7967
Fax: 886-5-221-7996
Contact Person: Eric Kuo
Inquiry Now
PRODUCTS BASE SPECIFICATION
UNWIND BAG SEALING SIZE 1.2m
FILM WIDTH 100~850mm×1 Lines
100~420mm×2 Lines
FILM LENGTH 285~455mm(With 4 Sealing)
455~915mm(With 2 Sealing)
910~1820mm(With 1 Sealing)
SEALING THICKNESS 0.02~0.06mm
FILM SPEED MAX 120m/min(Without Core)
185m/min(Without Core)
BAGS SPEED MAX 300pcs/min(With 4 Sealing)
150pcs/min(With 2 Sealing)
75pcs/min(With 1 Sealing)
SPEED FOR CHANGING THE ROLLS MAX.6 ROLLS/PER MIN (WITHOUT CORE)
PRODUCTS THE SIZE FOR FINISHED PRODUCTION OF ROLLS ( WITHOUT CORE )
ROLL WIDTH 150-680mm×1Line/Max(C Fold)
150-300mm×2Lines/Max
ROLL DIAMETER 170mm/Max
PRODUCTS THE SIZE FOR FINISHED PRODUCTION OF ROLLS ( WITH CORE )
ROLL WIDTH 680mm×1 Lines/Max
300mm×2 Lines/Max
ROLL DIAMETER 170mm/Max
AIR PRESSURE SUPPLY Dryer 6 Kg/5HP (Not Included)
