Accumulator Head Blow Moulding Machines-Water Pressure Tank

Classification : Accumulator Head Blow Molding Machines

FONG KEE INTERNATIONAL MACHINERY CO., LTD.

FONG KEE INTERNATIONAL MACHINERY CO., LTD.
Country:
Phone: 886-6-2532157
Fax: 886-6-2533079
Contact Person: Susan Wei
  • Mono Layer and Multi-layer Accumulator Head Type Blow Moulding Machine.
  • For producing 20 liter to 1000 liter volume, all kinds of water pressure tank, jerry can, containers, air duct and industrial low moulding products.
Resin BASF LUPOLEN 5261Z (UHMW HDPE)

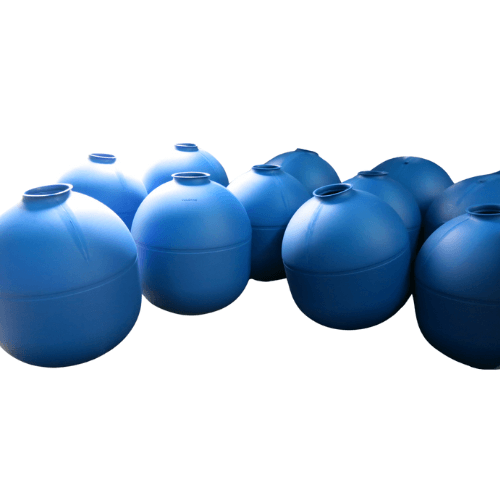

Products Water pressure tank
Φ650*810, 15.2kg
Φ780*905, 21.0kg
Φ890*980, 25.5kg
Driving motor 200 HP AC motor with inverter control
Extruder Screw dia.125mm, L/D=30:1
Output 380 kg/hr (max.)
Head design Accumulator type, 50lt for shot weight 35kg
Die lip size φ1100mm diameter (max.)
Clamping plate
( H x W )
1500mm x 1500mm
Clamping force 180 tons (1800KN)
Clamping distance 1100 - 2500 mm
Mould thickness 1300 mm
Tonnage pressure Max. 180 kg/C㎡ (Adjustable)
Push-out unit Fully automatic
