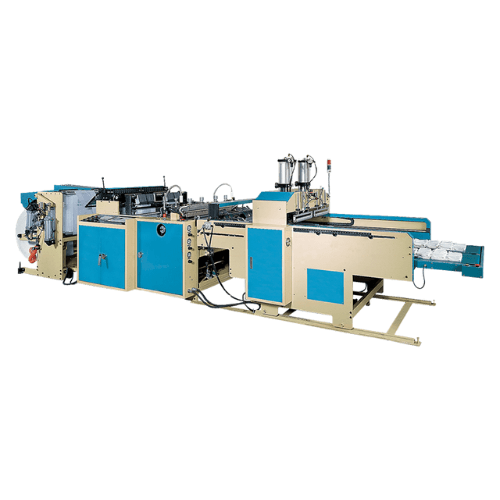

2-Line Heat Sealing T-Shirt Bag Making Machine

Classification : Plastic Bag Making Machine

CHYI YANG INDUSTRIAL CO., LTD.

CHYI YANG INDUSTRIAL CO., LTD.
Country: Taiwan
Phone: 886-3-328-8686
Fax: 886-3-328-3737
Contact Person: Renee Kuo
  • Specialized for producing T-Shirt bags with heat cutting for non-tension sealing
  • CTP Series is equipped with one feeding devices & one printing mark photocell, CTTP Series has two feeding devices and two printing mark sensor
  • Machine is automatically stopped if a bag is jam or miss the printing mark
  • A puncher and conveyor unit in-line are for full automatic printed T-shirt bag production to save labor costs
  • Servo motor is an option
  • We didn’t show all specification & model, please kindly contact us for other model & details specification

MODEL NO.

CTP-2030

CTP-2830

 CTP-3230

 CTTP-3230

 CTTP-4030

Bag width

 18”

 26”

 30”

 14”+14”

 16”+16”

Bag length

 30”

 30”

30”

 30”

 30”

Film thickness (mm) (total layers) (mm)

 0.01~0.15

 0.01~0.15

 0.01~0.15

 0.01~0.15

 0.01~0.15

Capacity (without servo motor) (pcs/min/line) *

 30~120

 30~120

30~120

30~120

 40~120

Drive Motor (HP)

 2 HP

 2 HP

2 HP

 2 HP x 2 sets

2 HP x 2 sets

  Power Required (Kw)

 3

6

8.5

8

10

Machine Dimension (m)

 4.9 x 1.3 x 1.5

 4.9 x 1.5 x 1.5

 4.9 x 1.7 x 1.5

 4.9 x 1.7 x 1.5

 4.9 x 1.9 x 1.5


*Output depending on bag width, length, thickness & raw material.
For more details specification, special requirements & quotation, please kindly contact us.


C2TP-SS- Series-Fully Automatic Servo Drive 2-Line Heat Sealing T-Shirt Bag Making Machine


FEATURES:

  • It is special designed for producing mass production of heat sealed, printed T-shirt bags. Maximum speed is available driven up to 300pcs/min/line.
  • Non-tension air feeding and heat sealing system to afford a smoothing film feeding and stronger sealing strength
  • Equipped with jumbo unwind stand, air shaft, air cylinder, film up-lifting system and dance roller device for upgrading operation. Maximum jumbo roll diameter up to 1200mm.
  • Japan made speed driven inverter, servo motor and controller to make sure the demands of high speed, stable production and exact sizes.
  • The automatic folding device is the optional item to fold up the pile of bags to save labor.


MODEL NO.

C2TP+SS-3230

C2TP+SS-4030

Bag width

160-365mm x 2 lines

160-465mm x 2 lines

Bag length

350-650mm x 2 lines

350-900mm x 2 lines

Film thickness (mm)

0.01~0.035mm

0.01~0.035mm

Capacity (pcs/min)

190-300 pcs

150-300 pcs

Power Required (Kw)

15

17

  Machine Dimension (m)

6.5 x 1.6 x 1.7

6.5 x 1.8 x 1.7

*Output depending on bag width, length, thickness & raw material.
*For more details specification, special requirements & quotation, please kindly contact us.
