Name: 2 Lanes J Shape (CP) Banana Bag Holes Punching and Sealing Machine
Brand: MING JILEE ENTERPRISE CO., LTD.

2 Lanes J Shape (CP) Banana Bag Holes Punching and Sealing Machine

Classification : Bag Converting Machine

MING JILEE ENTERPRISE CO., LTD.

Country: Taiwan

Phone: 886-6-5783420

Fax: 886-6-5783347

Contact Person: Chris Chang

Inquiry Now

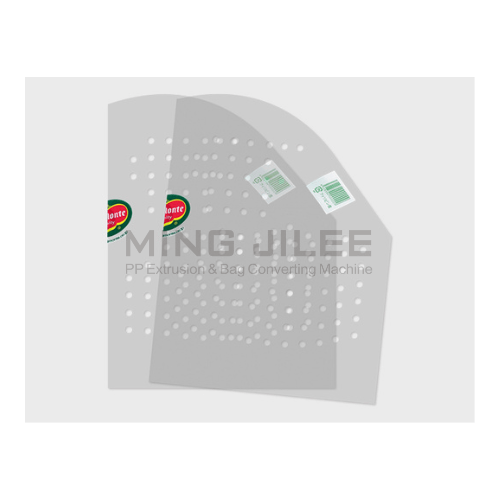

The MGA-17B2-800SP is Ming Jilee's 2-lane J shape banana bag holes punching and sealing machine, converting P.P. or P.E. tubular blown film (cast form optional) into perforated bags for banana and produce packaging. Running two lanes in parallel, it punches ventilation holes and side-seals bags in a single pass to keep throughput high.

It processes single layer film from 0.03 to 0.08 mm thick at an effective bag width of 250 - 400 mm and an effective cutting (feeding) length of 150 - 420 mm, delivering an output of 160 - 240 pcs/min.

Model	MGA-17B2-800SP
General Machine Specifications
Machine Dimension	10,807 (L) x 4,425 (W) x 3,211 (H)mm
Machine Weight	5,682 kg
Required power	22.8 kw
Machine Performance
Feed Material	P.P. / P.E. Tube Blown film (Cast form is option)
Single Layer Film Thickness	0.03 - 0.08 mm
Effective Bag Width	250 - 400 mm
Effective Cutting (Feeding) Length	150 - 420 mm
Output	160 - 240 pcs/min
