Classification : PE Stretch / Cling Film Making / Rewinding Machine
Country: Taiwan
Phone: 886-3-328-8686
Fax: 886-3-328-3737
Contact Person: Renee Kuo

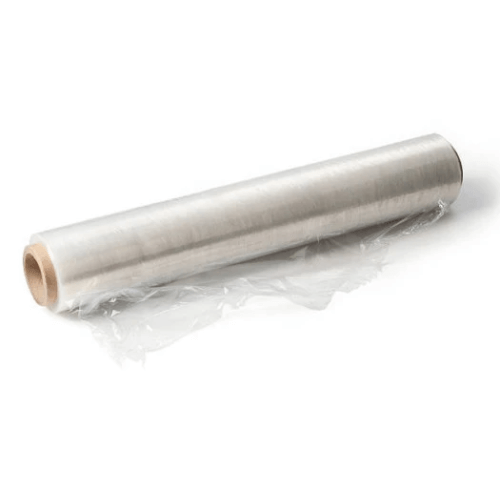

- Designed to produce industrial stretch film, cling film for food packing purpose, can produce shrinkable film, LDPE/LLDPE film also
- Slitting devices are provided to produce exactly film width you need, no need extra Slitting machine
- Rotating die device is provided for higher quality & uniform thickness film
- Producing film thickness depends on raw resin from 0.008mm
- Purchasing fully automatic winder makes machine automatically & save time of operators & cut film easier
- Co-speed controller matches same speed for take-up unit and winder to avoid film to be stretched
- We didn’t show all our models, please don’t hesitate to contact us for bigger extruders.
MODEL NO. |
WPE-45 |
WPE-55 |
WPE-65 |
WPE-75 |
Screw Diameter (mm) |
45 |
55 |
65 |
75 |
Output (Kg/hr) * |
15-50 |
40-70 |
50-100 |
60-130 |
Roller Width (mm) |
750 |
900 |
1200 |
1800 |
Power Required (Kw) |
48 |
56 |
72 |
82 |
Drive Motor (HP) |
25 |
30 |
40 |
50 |
LDPE Die Diameter (mm) |
200 |
250 |
300 |
600 |
Machine Dimension (m) |
6.2 x 2.4 x 4.1 |
6.3 x 2.7 x 4.5 |
6.6 x 3 x 6 |
7.2 x 3.4 x 6 |
*Output depending on film width, thickness, die size, raw material.
For more details specification, special requirements & quotation, please kindly contact us.
|
