MICRO MOLDING
Categories : Injection Molds
Micro molding is a very specialized art form, which is a kind of tooling design , manufactures small and precision plastic components with polymer-based functional devices, by increasingly demanded in the fields of life science, electronics, medical, photonics, automotive, and aerospace. The tiny-scale molding form of injection molding that entails building a cavity to match the shape of the part you want to make, sort of like the plastic molding that makes Lego bricks. THERE ARE THREE DIFFERENT THINGS TO KEEP IN MIND WITH MICRO MOLDING : Micro means the size of the part. It is the most common definition when dealing with micro molding. Micro features relates to tiny parts on a larger part. As a whole, the part can be big, but its components can be smaller, or micro features. Micro tolerance is how the parts are measured and how close to the needed measurement the part has to be to be considered a good or usable part. When a part is molded, it has to measure within the needed measurement (the tolerance), which could be as small as a thousandth of an inch. Small parts that are simple to make have tolerances that are not as tight and would be considered regular molding. SOME ADVANTAGES OF DESIGN GUIDE IN YOMURA AS : Dimension Aspect ratios around 6:1 (material dependent) Wall thickness : 0.3 mm ( 0.012”) min. for plastic Hole dimension : 0.2mm ( 0.008”) – 0.5mm ( 0.02”) min. Pitch of hole : 0.3 mm ( 0.012”) – 0.50 mm ( 0.02”) min. Tolerance (min) : 0.01 mm ( 0.0004”) – 0.02 mm ( 0.0008”).
3-Layer Mold Vacuum Compression Molding Machine
Categories : Compression Molding Machines
TYC-V-22-3RT-2-S-PCD 3-Layer Mold Demolding (3RT)
PA/ABS COMPOSITE MATERIAL (Ultra Impact Modified Grade)
Categories : PA(Polyamide) /Nylon
Increase the toughness of PA/ABS at low temperatures.
PP BLOWN FILM MACHINE
Categories : Blown Film Extruders Lines
High Speed PP Blown Film Machine is suitable for producing PP bags and films. Special design of screw results in better mixing to ensure high output and good film quality. AC inverter control motor for energy saving. The water-quenched system effectively makes films glossier and more transparent, very suitable for food, flower and garment packaging. Also capable of producing multilayer films (Model: CTPP)
Central Impression Flexographic Printing Press
Categories : Flexographic Printing Machines
THE RPM SERIES FLEXO PRINTING PRESS COMBINES BOTH PERFORMANCE AND ECONOMICAL VALUE FOR OUR CUSTOMERS. THANKS TO OUR ERGONOMIC, USER FRIENDLY PRESS DESIGNS, WE MAKE MACHINE OPERATIONS EASY AND SIMPLE JOB CHANGES ARE NO LONGER AN ARDUOUS TASK, REDUCING PRESS DOWN TIME, AND INCREASING PROFIT.
Pulse Water Channel Cleaning Machine
Categories : Cleaning Equipment
MIZUKEN's pulse water channel cleaning machine uses a purely physical flushing process that mixes high-pressure air with water. It is designed for cleaning mold water and oil channels, improving cleaning efficiency, extending mold service life, and providing an energy-saving and environmentally conscious smart-cleaning solution.
Polarizer Bonding Machine GFL-20
Categories : Extrusion Lamination Machines
High Rigid Body Design： Higher workpiece machining accuracy. More stabilized bonding range. Higher accuracy. Smooth Bonding Process： The bonding process has been carefully designed in providing safe interlocking and higher yield rate. Automatic Film Stripping Mechanism (Optional)： Automatic bonding film stripping mechanism in providing stabilized action and higher efficiency. Patented Bonding Mechanism： Special bonding mechanism is designed to achieve higher bonding accuracy and air bubble free effect.
Hyperform® HPN® 900ei
Categories : Additives
This high-performance additive for PP homopolymers boosts stiffness without reducing impact, delivers isotropic shrinkage and improved aesthetics, and accelerates processing for PP producers. Balance of flexural modulus and impact resistance Lower haze and yellowness for a clearer, cleaner look Reduced warpage for thin-wall molding High heat deflection temperature
Moldpro Temperature Controller – Key Features
Categories : Runner Systems
(1) Synchronized Heating: On startup, the software identifies the hot plates and activates synchronized heating, where faster-heating zones follow the slower ones, so all zones reach operating temperature at the same time. (Invention patent granted) (2) Over-Temperature Protection: If temperature rises 30°C above the set point and is out of control, the system sounds an alarm and cuts power to prevent fire and resin carbonization inside the runner. (3) Under-Temperature Alarm: If temperature falls 30°C below the set point and is out of control, the system sounds an alarm. (4) Auto Zone Detection: Automatically detects the number of zones on startup and powers them on, with no need to activate each zone manually. (5) Compact Design: 4-, 6-, and 8-zone controllers are only about the size of an A4 sheet, saving valuable floor space. (6) SCR Power Output: SCR phase-angle power output effectively protects the hot runner heating system. (7) Heater circuit fault detection. (8) Thermocouple open-circuit detection. (9) Thermocouple reverse-connection detection. (10) Instant Alarm: The system immediately sounds an audible alarm upon detecting any abnormality. (11) Optional valve gate control. (Patent pending) (12) Optional auto power-off when the injection molding machine is idle for an extended period. (Patent pending) (13) 2-year warranty (excluding fuses and damage caused by human error). (14) Product Liability Insurance: Covered by NT$20 million product liability insurance (Taiwan only). Warning: High voltage. Do not open the controller housing. (Covers bodily injury attributable to Moldpro products; actual compensation may differ from the insured amount.)
MULTI-LAYER AUTOMATIC FEED CUTTING MACHINE VAC-310
Categories : Cutting Machines
Double-Axle Synchronous Pressurizing Mechanism： Performs the pressurization with double output axle to provide powerful and stabilized pressurizing capacity. Automatic Feed Mechanism： Uses servo control to carry out the setting according to the breadth and length of the material. Alignment Mold System： Performs concurrent cutting process after locking the material in place. Parameter Storing System： Performs module-based memory for the production figures to facilitate the parameter management. Cutting Plate Turntable Mechanism： Sets the offset length to achieve over 95% of plate utilization rate after cutting. High-Efficiency Boosting Circuit： Reduces over 30% of power consumption as compared to conventional circuit.
Air Booster
Categories : Compressed Air & Pneumatic Equipment
In order to higher the pneumatic air pressure necessary. Air Compressor
5 Gallon Bottle
Categories : Horizontal Blow Molding Machines
Good toughness Light weight Acid and alkali resistant Fast production Good transparency plastic bottle Good impact resistance Food grade container Precise preform neck Stable external appearance Easy processing Anti-aging
Extrusion Dies MELTBLOWN DIES
Categories : Extrusion Dies and Die Heads
SUITABLE AVAILABLE FOR POLYMERS INCLUDING PET And PP High processing precision. Internal heating with heating rod, external heating with heating board, temperature control by heating oil cycle to ensure products of good uniformity. Meltblown filter in continuous and automated production to cut production losses more than 35%, cu costs, reliable product quality. Cut production materials consumption sharply. Featuring high yield, low power consumption, low loss, easy operation. Integrated meltblown Extrusion Die. Integrated meltblown Extrusion Die featuring precision aperture, good consistency and without maintenance wear out. Improved meltblown fiber quality and uniformity, improved product quality. Improved Extrusion Die life cycle and life span. Reduced Extrusion Die change operating time, cut maintenance cost and power consumption. Installation capacity down 30 ~ 40 KW. Cut production costs sharply.

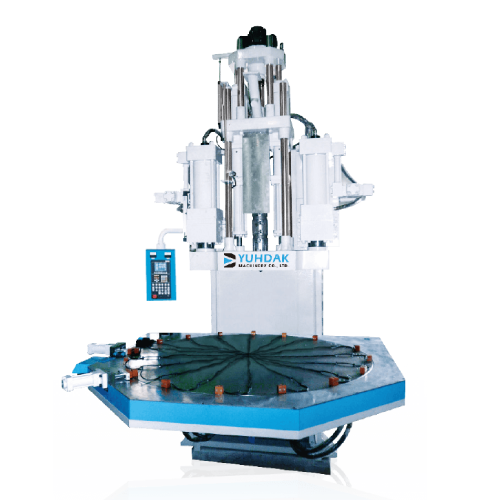

Vertical 3-TIE BAR Rotary Injection Machine
Categories : Vertical Injection Molding Machines
Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding. With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
Hot Runner System Pin Point Gate: T-TE Type
Categories : Runner Systems
Small gate vestige on part surface. Good material flow ability for direct gating. Minimum distance between tips , excellent choice for multi cavity. Low color change capability can be compensate by insulation insert. Highly applicable to general plastics.
Flat Screen Printing Machine
Categories : Screen Printing Machines
Flat screen printing machine for flat films, keys, plastic housings, and similar workpieces. Models: TP-430FS, TP-430FVS, TP-600FS, and TP-600FVS.
