Classification : T-shirt Bag on Roll Making Machine
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
- Computer control over the entire process
- From film roll to final pruduct, one process flow
- Automatic film feeding, cordination free from tension adjustment
- Oscillation film feeding system for stability and high out put
- Automatically stop when running out of film / film feeding blocks or jam
- Automatically core changing system
- Punch system on magnetic roller
| Model | STBCR-40-L2 |
| Bag length | 350 - 1500 mm |
| Bag width | 180 - 330 mm |
| Film Thickness | 0.008 - 0.035 mm / layer |
| Production speed | 150 pcs/min/line (max) |
| Finished Roll size | Ø 180 x 330 mm (max) |

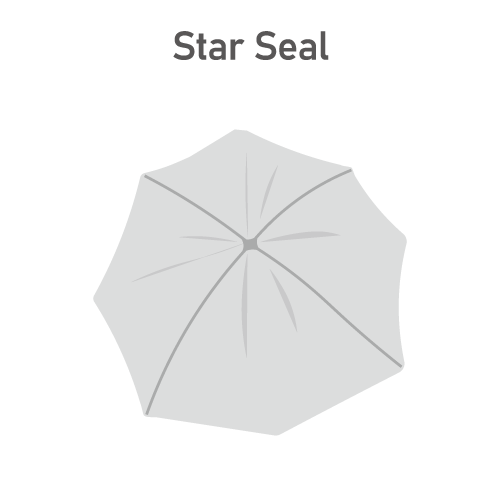

| Upload Film Roll Siza | Ø 900 x 330 mm (max) (bottom seal) Ø 900 x 550 mm (max) (star seal) |
| Core Size | Ø 25 ~ 75 mm, thickness 3 mm (min) |
| Power | 220Ｖ, 3Phases, 50/60HZ, 35KVA |
| Heater | 8 KW |
| Dimension (L x W x H) | 7750 x 3300 x 1580 mm |
| Packing (L x W xH) | Unwinder: 2820 x 2270 x 1510 mm Folder : 2150 x 2270 x 1880 mm Machine : 2640 x 1880 x 1580 mm Rewinder : 860 x 1420 x 1250 mm |
| Required Air Compressor | 10HP（not included） |
