Fully Automatic High Speed 2 Lines T-shirt Bag Making Machine-ST-77 / ST-77-500

Classification : T-shirt Bag Making Machines

COSMO MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-2-86782865~8 (214)

Fax: 886-2-86782869

Contact Person: Mr. Yarzar

Video Inquiry Now

Suitable for the production of Bio-film and PLA film

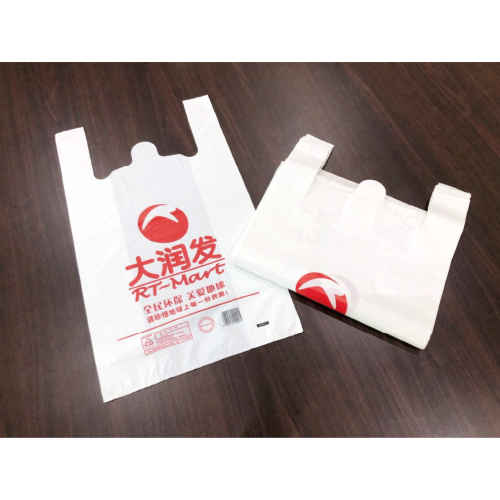

2 lines T-shirt bag making machine
High production efficiency to save manpower and time
From film roll to final bag, one process flow
It's easy to adjust the bag length, production speed, stacks on the interface
Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment
Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses
Automatic error proof system

MODEL	ST - 77
Production Size	Length : 320 ~ 650 mm Width : 160 ~ 360 mm Thickness : 8 ~ 35 um
Production Speed	180 ~ 250 pcs / min / line
Film Roll Size	Ø 900 x 360 mm
Power	220 V, 3 Phases, 50 / 60 HZ, 15 KVA
Heat	5.5 KW
Dimension	L : 6000 mm W : 1500 mm H : 1750 mm
Air Compressor	6 HP ( not included )
