Classification : Fully Automatic T-Shirt Bag Making Machines
Country: Taiwan
Phone: 886-5-2686688
Fax: 886-5-2687821
Contact Person: Cathy Chang

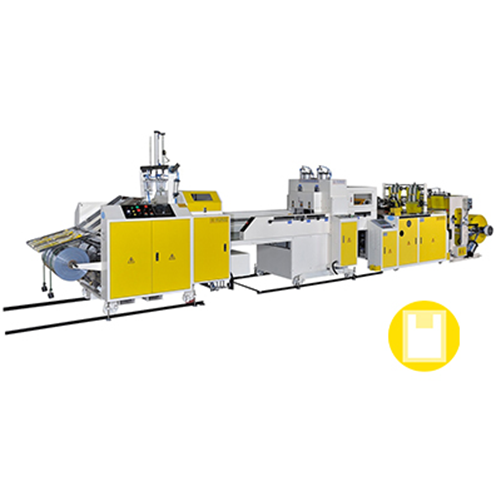

FULLY AUTOMATIC SUPER HIGH SPEED 2 LINES T-SHIRT BAG MAKING MACHINE BY DOUBLE SERVO MOTORS CONTROL WITH AUTO PACKING DEVICE.
‧ In-line auto-packing machine, reducing number of employees.
‧ German made photocell-SICK for printed outer bags.
‧ Japan made servo motor & servo driver control bag length precisely and stable speed, reducing electric consumption.
‧ Bag length & speed can be changed easily from touch screen.
‧ German made photocell-SICK for accurate printing mark.
‧ Machine body is made of thick steel frame for stability at high speed operation.
‧ Automatic lift up reel unwinder with air shaft, reducing the number of employees.
‧ Automatic tension control for jumbo diameter reels.
‧ In-line hydraulic punching machine with bag folding device and Japan made sensors for accurate bags punching and folding position.
‧ Punch-out scraps are collected by conveyor for recycling.
‧ In-line auto-packing machine, reducing number of employees.
‧ German made photocell-SICK for printed outer bags.
‧ Japan made servo motor & servo driver control bag length precisely and stable speed, reducing electric consumption.
‧ Bag length & speed can be changed easily from touch screen.
‧ German made photocell-SICK for accurate printing mark.
‧ Machine body is made of thick steel frame for stability at high speed operation.
‧ Automatic lift up reel unwinder with air shaft, reducing the number of employees.
‧ Automatic tension control for jumbo diameter reels.
‧ In-line hydraulic punching machine with bag folding device and Japan made sensors for accurate bags punching and folding position.
‧ Punch-out scraps are collected by conveyor for recycling.
Model | CW800ATP-SV | CW1000ATP-SV |
BAG WIDTH (mm) | 130~330 x 2 |
130~430 x 2 |
BAG LENGTH (mm) | 300~600 | 300~600 |
THICKNESS (mm/layer) | 0.01~0.035 |
0.01~0.035 |
PRODUCTION SPEED (cycles/min) | MAX. 250 x 2 | MAX. 250 x 2 |
WIDTH OF OUTER BAG (mm) | 160~360 |
160~460 |
ROLL DIAMETER OF OUTER BAG (mm) | Max. 500 | Max. 500 |
PACKING SPEED (packs/min) | Max. 6 x 2 Lanes |
Max. 6 x 2 Lanes |
THICKNESS OF OUTER BAG (mm/layer) | 0.02~0.05 | 0.02~0.05 |
AIR VOLUME & PRESSURE (hp) | 10 |
10 |
DIMENSION L x W x H (cm) |
900 x 180 x 230 |
900 x 200 x 230 |
PACKING L x W x H (cm) |
230 x 180 x 180 400 x 180 x 220 260 x 180 x 220 |
230 x 200 x 180 400 x 200 x 220 260 x 200 x 220 |
NET WEIGHT (kg) |
2800 |
3000 |
GROSS WEIGHT (kg) |
3250 |
3450 |
REMARK | 2 Photocells | 2 Photocells |
