Classification : Bag on roll Making Machines
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
- Computer control over the entire process
- From film roll to final bag, once process flow
- Servo motor, as standard attachment, makes it easy to adjust the bag length and production speed
- Automatic film feeding, coordination free from tension adjustment
- Automatic stop system on running out of film
- Automatically stop system on film blockage bag jam
- Automatically stop when color scanning misses
- High production efficiency to save manpower and time

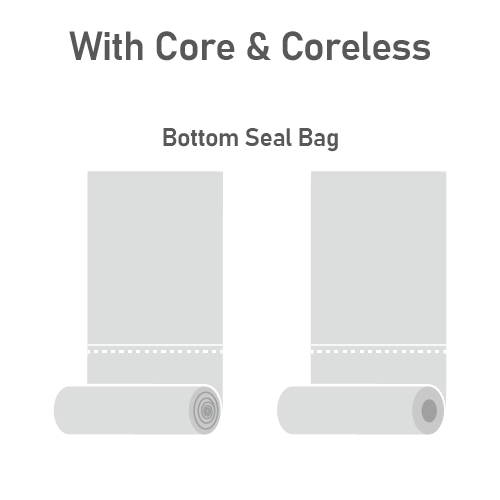

- Easy switch-able core to core-less function
| MODEL | SMNRCR-1000 |
| Power | 200V, 3phases, 50/60hz, 15KVA |
| Heater | 2.5 KW |
| Production Length | 200 ~ 1500 mm |
| Production Width | 300 ~ 900 mm |
| Production Speed | 60 ~ 100 meter/min |
| Film Thickness | 0.08 ~ 0.6 mm |
| Film Roll Size (Loading) | Ø 900 x 900 mm (max) |
| Finished Roll Size (On Core) | 750 × Ø 150 mm (max) |
| Finished Roll Size (Core-less) | 400 × Ø 150 mm (max) |
| Dimension L x W x H | 8750 x 3000 x 2000 mm |
| Air Compressor | 6HP (not included) |
