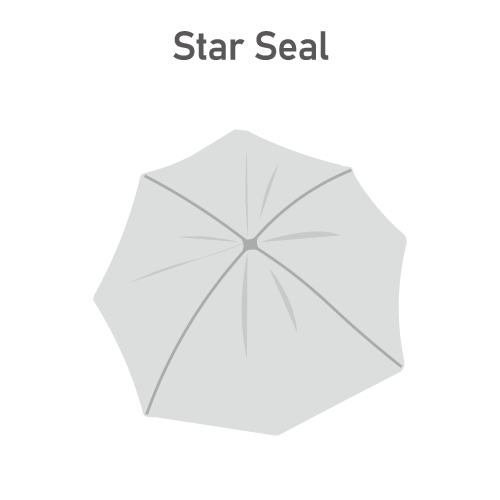

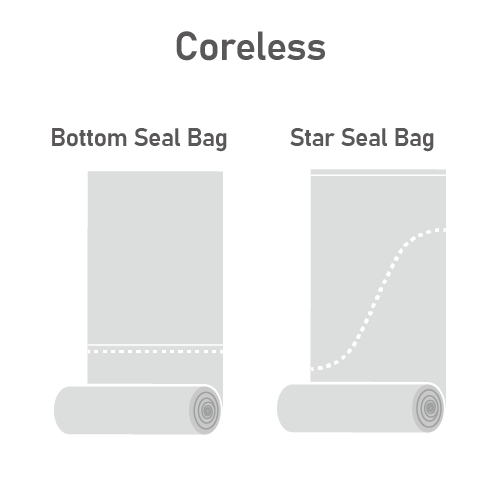

Fully Automatic High Speed Bottom Seal & Star Seal Bag on roll Making Machine (Perforation Bag & S Shape Bag)/ SOSR-1000-R

Classification : Bag on roll Making Machines
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
Inquiry Now
  • Computer control over the entire process
  • From film roll to final pruduct, one process flow
  • Automatic film feeding, cordination free from tension adjustment
  • Automatically stop when running out of film / color scanning error / film feeding blocks or jam
  • Oscillation film feeding system for stability and high out put

MODEL SOSR-1000-R
Length 500 ~ 3000 mm
Width 300 ~ 900 mm
Thickness 8 ~ 60 um
Production Speed 60 ~ 150 meters / min / line
Film Roll Size Ø 900 x 900 mm
Power 220V, 3Phases, 50/60 HZ, 30KVA
Heater 6.2 KW
Dimension L7000 x W1850 x H1600 mm
Air Compressor 6 HP ( not included )
