Fully Automatic High Speed 2 Lines Core & Coreless Bag on Roll Making Machine / SRCR-40 / SRCR-50

Classification : Bag on roll Making Machines
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
Inquiry Now
  • Computer control over the entire process
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
  • Automatic film feeding, coordination free from tension adjustment
  • Automatically stop when running out of film
  • Automatically stop when film feeding blocks or bags jam
  • Automatically stop when color scanning misses
  • High production efficiency to save manpower and time
  • Aotumcatically core replacing system





【COSMO】Fully Automatic High Speed 2 Lines with Core & Coreless Bag on Roll Making Machine:SRCR-40



MODEL SRCR-40 SRCR-50
Bag Length 250 ~ 1500 mm (core-less) 250 ~ 1500 mm (core-less)
150 ~ 750 mm (core) 150 ~ 750 mm (core)
Bag Width 100 ~ 330 mm (core-less) 100 ~ 330 mm (core-less)
150 ~ 350 mm (core) 150 ~ 400 mm (core)
Film Thickness 0.008 ~ 0.035 mm / layer 0.008 ~ 0.035 mm / layer
Finished Roll size Ø150 x 330 mm (core-less) Ø150 x 330 mm (core-less)
Ø150 x 350 mm (core) Ø150 x 430 mm (core)
Production Speed 100 meter / min / line 100 meter / min / line

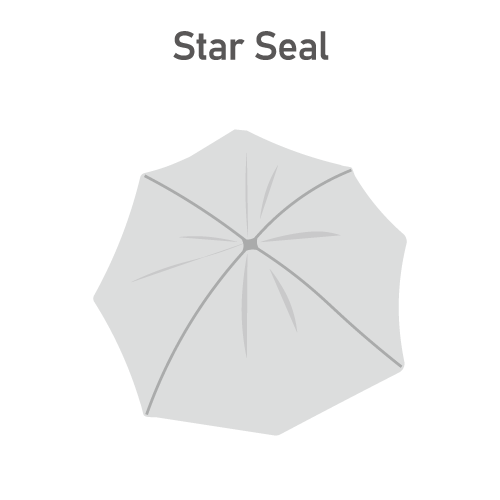

Upload Film Roll Size Ø900 x 550 mm (star sealing) Ø900 x 660 mm (star sealing)
Ø900 x 330 mm (bottom sealing) Ø900 x 430 mm (bottom sealing)
Power 220V, 3 Phases, 50/60HZ, 20KVA 220V, 3 Phases, 50/60HZ, 20KVA
Heater 3.5KW 3.5KW
Dimension L x W x H 5800 x 2750 x 1950 mm 5800 x 3200 x 1950 mm
Required Air Compressor 10HP (not included) 10HP (not included)
