Fully Automatic High Speed 2 Lines Coreless Star Seal Bag on Roll Making Machine / SR-40 / SR-50

Classification : Bag on roll Making Machines
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
Video Inquiry Now

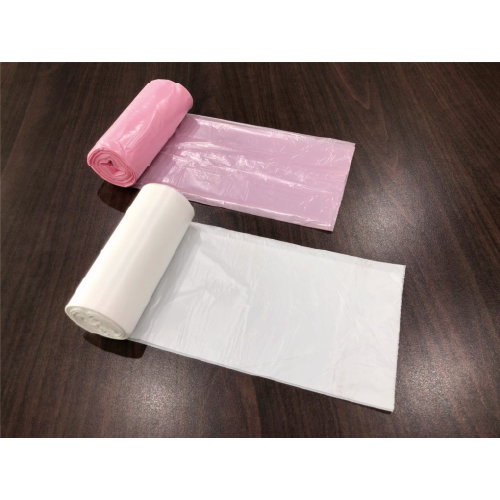

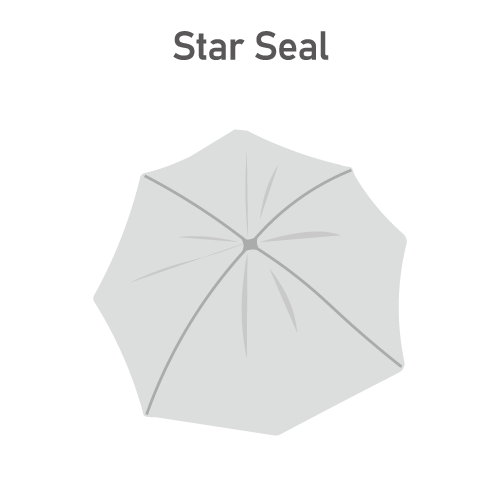

  • 2 lines coreless star sealing bags on roll making machine
  • High production efficiency to save manpower and time
  • Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed
  • Computer control over the entire process
  • From film roll to final bag, one process flow
  • Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses
  • A/B Line producing different length bag, counter independent
MODEL SR-40 SR-50
Bag Length 250 ~ 1500 mm 250 ~1500 mm
Bag Width 100 ~ 330 mm 100 ~ 430 mm
Film Thickness 0.008 ~ 0.060 mm / layer 0.008 ~ 0.060 / layer
Finished Roll Size Ø150 x 330 mm (max) Ø150 x 330 mm (max)
Production Speed 100 meter / min / line 100 meter / min / line
Upload Film Roll Size Ø900 x 550 mm (max) Ø900 x 650 mm (max)
Power 220V, 3 Phases, 50/60HZ, 20KVA 220V, 3 Phases, 50/60HZ, 20KVA
Heater 3.5KW 3.5KW
Dimension L x W x H 6750 x 2750 x 1950 mm 6750 x 3200 x 1950 mm
Required Air Compressor 6HP (not included) 6HP (not included)



* The specification are subject to be changed for improvement without notice.
