Classification : Bag Making Machine
Country: Taiwan
Phone: 886-6-2730889
Fax: 886-6-2730887
Contact Person: Jack Lin

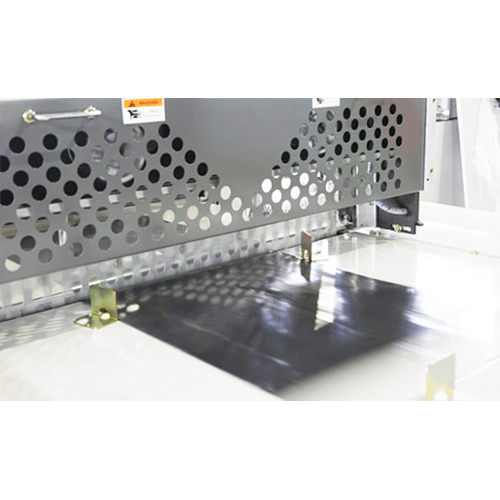

● Equipped with tensionless seal for sealing the heavy duty garbage bags
● Bag Width: 100mm~ 1000mm
● Bag Thickness: Max. 60micron
● Capacity: 30 ~ 150 pcs/ min
● Bag Width: 100mm~ 1000mm
● Bag Thickness: Max. 60micron
● Capacity: 30 ~ 150 pcs/ min

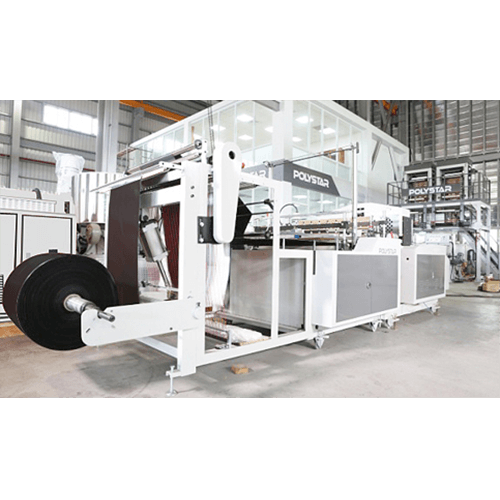

Model Name | FDB Folded Type Garbage Bag Making Machine |
Final Product | Folded Type Bags |
Application | Folded Type Bags, Heavy Duty Flat Bags |
Material | HDPE, LDPE |
Output range | 30 -150 pcs/min |
Machine Width | 32-42' |
Bag Width | 100mm~1000mm |
Bag Thickness | Maximum 60 micron |
Servo motor | Yaskawa |
Photocell | SICK |
Optional Devices | Conveying Table, Manual Punching Device |
Delivery Time | 90~100 days |
Warranty | 1 year |
Technical Assistance | Engineers available to service machinery overseas |
Model | FDB-32 | FDB-42 |
1 deck | 1 Deck | |
Lane | 1 Lane | 1 Lane |
Bag width | 750 mm | 1000 mm |
Bag length | 1000 mm | 1200 mm |
Max thickness | 0.02 mm | 0.02 mm |
Capacity | 30-50 pcs/min (1 lane) | 30-50 pcs/min (1 lane) |
Power consumption | 9 kw | 10 kw |
