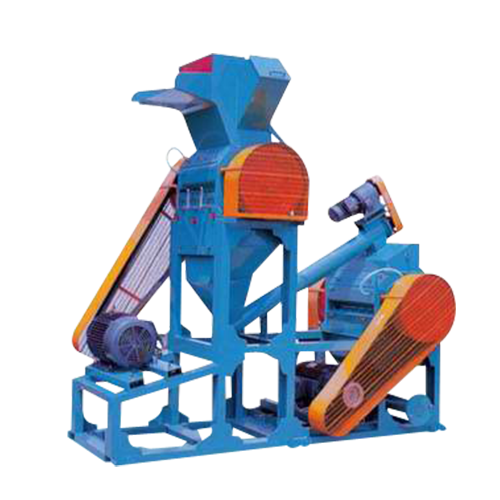

Crusher Machine KM-Versatile Crusher Powerful Crusher KM-225

Classification : Crusher Machine
Country: Taiwan
Phone: 886-4-26627809
Fax: 886-4-26627590
Contact Person: Ted Kao
Inquiry Now
 ● The round and hollow frame structure gives big processing volume to allow large quantity of waste feeding-in and fast output.The capacity is 3 times of the general type of crushers.
● Huge plastic blocks are not necessary to be pre-sawed and precut for labor saving.
● The special design of angle of cutters results in motor running easily and having the best output.
● With water cooling system and the clearance between cutters provide facilities of heat dissipation in order to reduce damage effect between bearings and machine bodies and lessen the depreciation of steel characteristics.
● The adoption of ball bearings provides strong friction resistance,good centering and vibration-free.
Type (Power) HP Into Size
(mm)
Rotary cutter Slationary cutter N.W. L* W* H
(mm)
Rotary Diameter Capacity
KM-210 5 270 * 160 3 PCS 4 PCS 400kgs 1000*680*1380 Ø200 150~300kgs
KM-212 7/12~10 315 * 185 3 PCS 4 PCS 700kgs 1500*800*1400 Ø260 200~500kgs
KM-215 15~20 400 * 240 3 PCS 4 PCS 800kgs 1600*960*1450 Ø298 300~600kgs
KM-218 20~25 463 * 274 3 PCS 4 PCS 1000kgs 1650*1050*1600 Ø330 400~700kgs
KM-220 25~30 536 * 286 3 PCS.or 6 PCS 4 PCS 1150kgs 1650*1160*1800 Ø380 500~900kgs
KM-225 30~50 636 * 290 3 PCS.or 6 PCS 4 PCS 1250kgs 1650*1280*1850 Ø380 600~1200kgs
