Classification : Horizontal Injection Molding Machine
Country: Taiwan
Phone: 886-2-28471194
Fax: 886-2-28471491
Contact Person: Jonathan Ke
● Patented none-side-force injection unit design.
● 2-platen 4-cylinder direct clamping system.
● Patented central-radial platen durable for 30 years.
● Intelligent program controller makes injection easier.
● The shortest injection molding machine.
● Precise energy-saving hydraulic system.

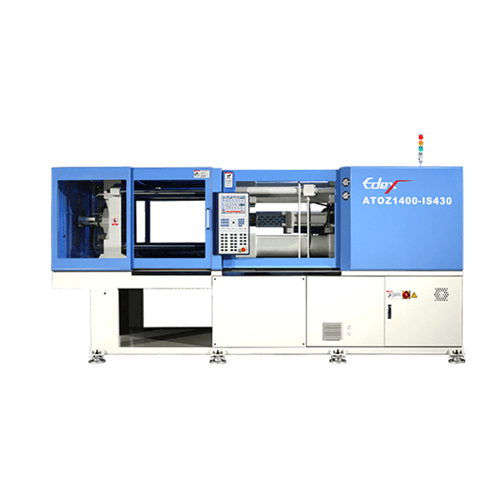

| Model | ATOZ1400-IS430 | ||||
| Injection system | Screw diameter | mm | 30 | ||
| Injection volume | cm3 | 134 | 183 | 239 | |
| Injection pressure | kgf/cm2 | 3013 | 2213 | 1695 | |
| Injection speed | mm/s | 172 | |||
| Screw speed | RPM | 300 | |||
| Clamping system | Maximum clamping force | KN/Tonf | 1400/143 | ||
| Distance between tie-bars | mm | 460x460 | |||
| Platen dimension | mm | 770x770 | |||
| Max. daylight | mm | 900 | |||
| Minimum mold thickness | mm | 200 | |||
| Ejector stroke | tonf/mm | 4/120 | |||
| Heater zone | set | N2+H3 | |||
| Heater capacity | KW | 7 | |||
| Electric power | KW | 16 | |||
| Machine dimension | m (LxWxH) | 3.68x1.4x1.74 | |||
| Machine weight | Ton | 6.3 | |||
