Classification : Horizontal Injection Molding Machine
Country: Taiwan
Phone: 886-2-28471194
Fax: 886-2-28471491
Contact Person: Jonathan Ke
● New design patent-IPIS (Interchangeable Plunger Injection System).
● Plunger Type Injection can highly save runner resin.
● 2-platen 4-cylinder direct clamping system.
● Patented central-radial platen durable for 30 years.
● Intelligent program controller makes injection easier.
● The shortest injection molding machine.
● Precise energy-saving hydraulic system.

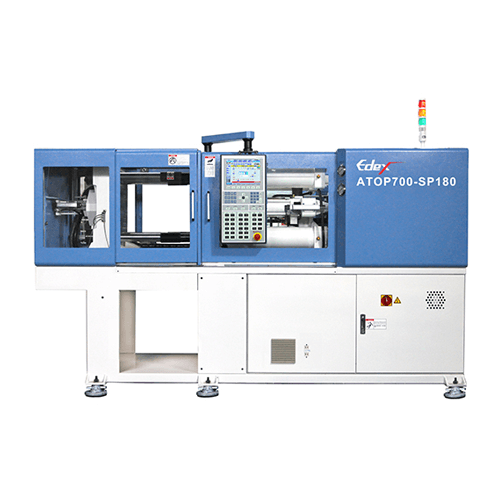

| Model | ATOP700-SP180 | ||||
| Injection system | Screw diameter | mm | 30 | ||
| Plunger diameter | mm | 16 | 22 | 28 | |
| Injection volume | cm3 | 16 | 22 | 28 | |
| Injection pressure | kgf/cm2 | 3254 | 2845 | 2390 | |
| Injection speed | mm/s | 347 | 210 | 154 | |
| Screw speed | RPM | 320 | |||
| Clamping system | Maximum clamping force | KN/Tonf | 700/71 | ||
| Distance between tie-bars | mm | 360x360 | |||
| Platen dimension | mm | 580x580 | |||
| Max. daylight | mm | 600 | |||
| Minimum mold thickness | mm | 150 | |||
| Ejector stroke | tonf/mm | 3.3/100 | |||
| Heater zone | set | N4+H3 | |||
| Heater capacity | KW | 6 | |||
| Electric power | KW | 10 | |||
| Machine dimension | m (LxWxH) | 2.85x1.16x1.55 | |||
| Machine weight | Ton | 3.2 | |||
