PRM-TAIWAN

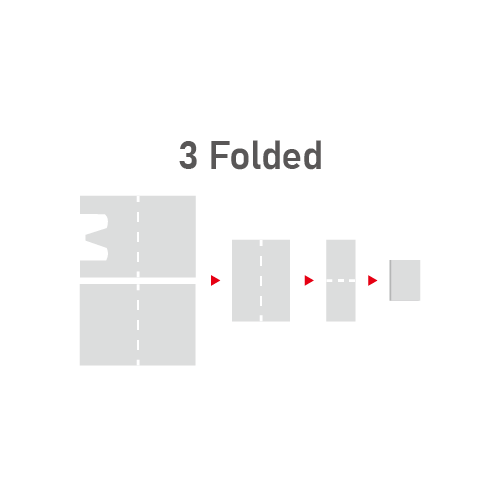

Fully Automatic 3 Folded T-shirt & Bottom Seal Bag Making Machine with Oscillate Feeding System-STB-28+3F

Classification : Garbage Bag & Industrial Bag Making Machines
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar
Video Inquiry Now
  • Computer control over the entire process
  • From film roll to final pruduct, one process flow
  • Servo motor, as standard attachment, makes it easy easy to adjust the bag length and production speed
  • Automatically stop when running out of film / film feeding blocks or jam / scanning error
  • Magnetic roller rotating perforation
MODEL STB -28+3F
Production Size

Length : 500 ~ 1400 mm

Width : 350 ~ 660 mm

Thickness : 12 ~ 35 um
Production Speed
50 ~120 pcs / min
Film Roll Size Ø 900 x 660 mm
Power 220 V, 3 Phases,  50 / 60 HZ, 30 KVA
Heat 4.4 KW
Dimension

L : 10000 mm

W : 1750 mm

H : 1400 mm

Air Compressor 6 HP ( not included )
