Classification : T-shirt Bag Making Machines
Country: Taiwan
Phone: 886-2-86782865~8 (214)
Fax: 886-2-86782869
Contact Person: Mr. Yarzar

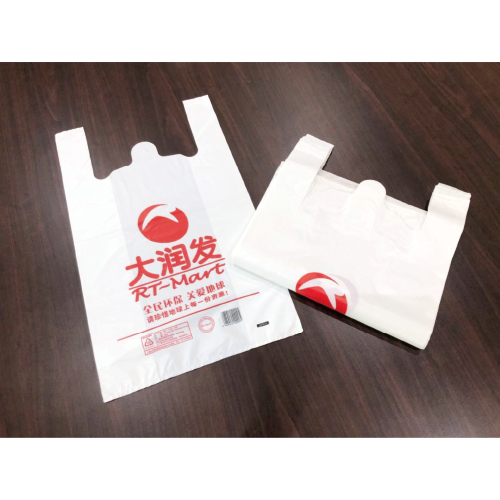

- 2 / 3 / 4 lines T-shirt bag making machine
- High production efficiency to save manpower and time
- From film roll to final bag, one process flow
- It's easy to adjust the bag length, production speed, stacks on the interface
- Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment
- Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses
- Automatic error proof system

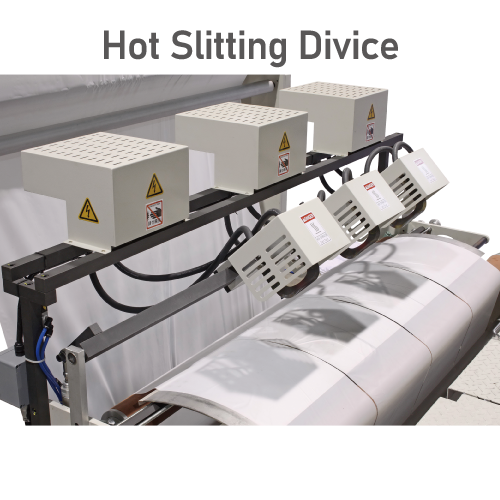

- Hot slitting with side gusset device
| MODEL | ST-88-G2 | ST-88-G3 | ST-88-G4 |
| Bag Length | Length: 350 - 650 mm | Length: 350 - 650 mm | Length: 330 - 650 mm |
| Width: 160 - 365 mm | Width: 160 - 365 mm | Width: 120 - 250 mm | |
| Thickness: 0.008 - 0.035 mm | Thickness: 0.008 - 0.035 mm | Thickness: 0.008 - 0.035 mm | |
| Production Speed | 160 ~ 250 pcs / min / line | 160 ~ 250 pcs / min / line | 120 ~ 250 pcs / min / line |
| Upload Film Roll Size | Ø 900 x 1200 mm | Ø 900 x 1400 mm | Ø 900 x 1600 mm |
| Power | 220V , 3 Phases , 50/60HZ , 20KVA | 220V , 3 Phases , 50/60HZ , 25KVA | 220V , 3 Phases , 50/60HZ , 30KVA |
| Heater | 6 KW | 8 KW | 10 KW |
| Required Air Compressor | 6HP (not included) | 6HP (not included) | 10HP (not included) |
* The specification are subject to be changed for improvement without notice.
