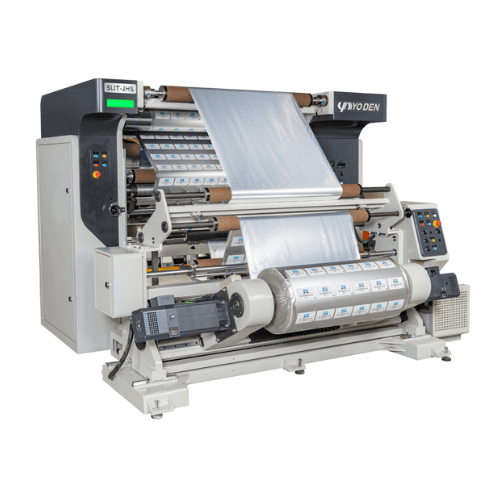

Slitting Machines ULTRA MAX/ JHS

Classification : Converting Machines

Applications: Packaging

Country: Taiwan

Phone: 886-4-23587272

Fax: 886-4-23580882

Contact Person: Vicky Chen

PURPOSE OF MACHINE

This new high performance robust Overhead Slitting Rewinder combines new technology, features and design in an ergonomic concept. The machine is available in web widths of 1300, 1600, 1800 and 2000 mm, at speeds up to 800 m/min, and available with 600 and 800 mm rewind diameters.
-Smart solutions
-Reliable, advanced, versatile
-Unmatched throughput
-Shaftless unwind with electric lift system
The overhead web path offers：
-Optimum access to slitting section
-Integrated inspection area
-No dirt collecting platform
-No safety hazard due to steps
-Easy web threading
-Integrated drive and controls

Material	Plastic films, laminates, Paper
Machine speed	800M/min
Available web width	1300mm/1600mm/1800mm/2000mm
Parent roll diameter	1000mm/1200mm
Parent cores	3",6"
Finished roll diameter	800mm
Slitting system	Shear cut, Blade cut Auto. Knife Positioning System
Slitting width	50mm upward
Winding cores	3",6"
