Classification : Converting System
Country: Taiwan
Phone: 886-6-232-1126
Fax: 886-6-203-1178
Contact Person: Kelly Kao

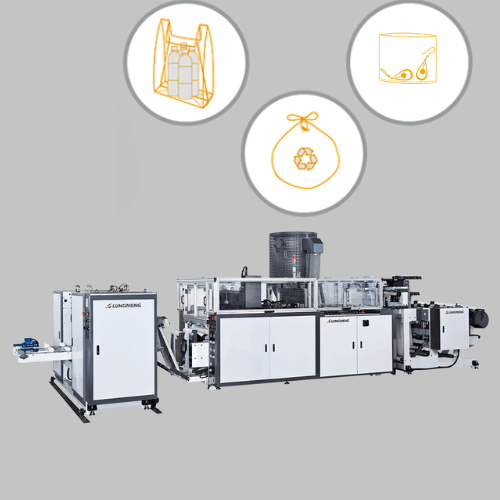

This line runs with a servo driven shuttle track sealing and perforation system and is able to produce various bags on roll, including star seal bottom t-shirt bags, s-cut bags on roll. Equipped with the user friendly PLC touchscreen control interface, there’s optional equipment, including the t-shirt bag unit, s-cut bag unit, folding device and labeling machine. Core and coreless options are also available by changing the rewinder.
-
Servo driven shuttle track sealing and perforation system.
-
Reliable versatile system to produce a wide variety of bag on roll products including star seal bottom t-shirt bag, s-cut bag on roll.
-
Equipped with operator friendly PLC touchscreen control interface.
-
Option:T-shirt bag unit, S-Cut bag unit, Folding device, Labeling machine.
-
Core/Coreless available by changing rewinder.
| Model: | TA-S-750XL |
| Max. Dia of Product(mm): | 130 mm |
| Finished Product Length(mm): | 127~2000 mm |
| Sealing Width (mm): | 700 * 1 lane 100 ~ 300 * 2 lane |
| Thickness (micron): | HDPE: 8~100 (single layer) Max. 200 (total) / LDPE: 20 ~200 (single layer) Max. 400 (total) |
| Machine Speed (M/ min): | 30~130 |
| POWER REQUIRED (kw): | 27.2 |
