Classification : Compounding Machine
Country: Taiwan
Phone: 886-4-26821888
Fax: 886-4-26819777
Contact Person: Jessica Liu

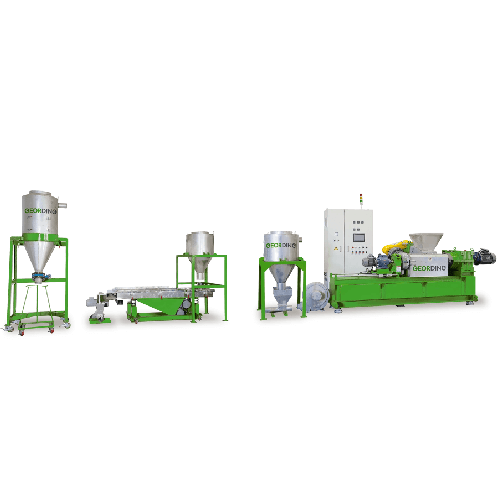

Rubber/Plastic mixed material, EVA, TPR, PVC, CaCO3, PVB, PU, TPU compounding, as well as various kinds of masterbatches pelletizing.
- Adequate kneading. Easy to clean and change raw material, saving hours of work.
- High capacity, low electricity usage
- Use double layer cyclone cooling tank to cool down finished products
- Support the adding of Calcium up to 85%
- The result of output production depends on actual specific gravity of materials
Model | GD-65THP-AC | GD-85THP-AC | GD-100THP-AC | GD-120THP-AC | GD-150THP-AC | GD-160THP-AC | GD-200THP-AC | GD-250THP-AC | ||
Main Extruder | ||||||||||
Screw Diameter L/D Ratio | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | 8~12 | ||
Main Power | 30~50HP | 30~50HP | 40~75HP | 60~100HP | 75~150HP | 100~200HP | 200~250HP | 200~300HP | ||
Twin Cone Feeding Motor | 3~5HP | 3~5HP | 5~7.5HP | 7.5~10HP | 10~15HP | 10~15HP | 15~20HP | 15~20HP | ||
Temp. Control | 4 zones | 5 zones | 5 zones | 6 zones | 7 zones | 8 zones | 8 zones | 8 zones | ||
Max. Outpou/Hr | 100~150kg | 150~200kg | 200~350kg | 350~500kg | 400~900kg | 500~1000g | 1000~1200kg | 1500~1800g | ||
Die Face Cutter | ||||||||||
Power | 2HP | 2HP | 3HP | 3HP | 5HP | 5HP | 5HP | 5HP | ||
Blower | ||||||||||
Power | 3HP | 3HP | 5HP | 5HP | 7.5HP | 7.5HP | 10HP | 10HP | ||
Cooling Tank | ||||||||||
Size | Ø500 | Ø550 | Ø770 | Ø770 | Ø770 | Ø770 | Ø770 | Ø770 | ||
Vibration Motor | ||||||||||
Motor | 1/4HP*2 | 1/4HP*2 | 1/4HP*2 | 1/4HP*2 | 1/4HP*2 | 3/4HP*2 | 3/4HP*2 | 3/4HP*2 | ||
Blower | ||||||||||
Power | 5HP | 5HP | 5HP | 7.5HP | 7.5HP | 7.5HP | 10HP | 10HP | ||
Storage Barrel | ||||||||||
Capacity | 1000L | 1000L | 1000L | 1000L | 1000L | 1000L | 2000L | 2000L | ||
Kneader | ||||||||||
Volume | 35L | 35L | 55L | 75L | 110L | 110L | 150L | Opt. | ||
Motor | 40HP | 40HP | 100HP | 150HP | 200HP | 200HP | 300HP | Opt. | ||
Bucket Conveyor | ||||||||||
Motor | 2HP | 2HP | 2HP | 2HP | 2HP | 2HP | 2HP | Opt. |
*The product line can be made to spec meeting customer needs.
*Equipment specifications are also constanly updated. You are welcomed to contact us for details.

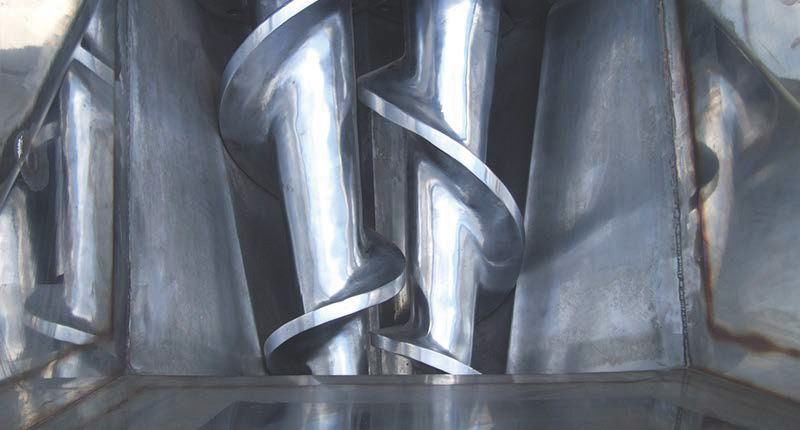

Twin-cone force feeding.

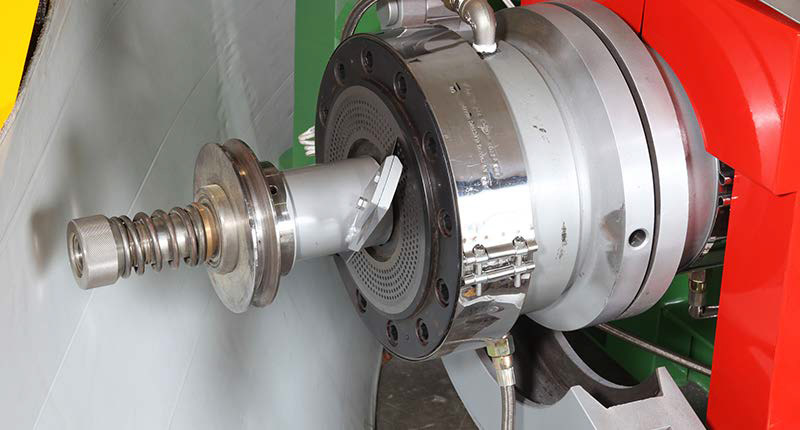

Using air cooling die-face cutting.

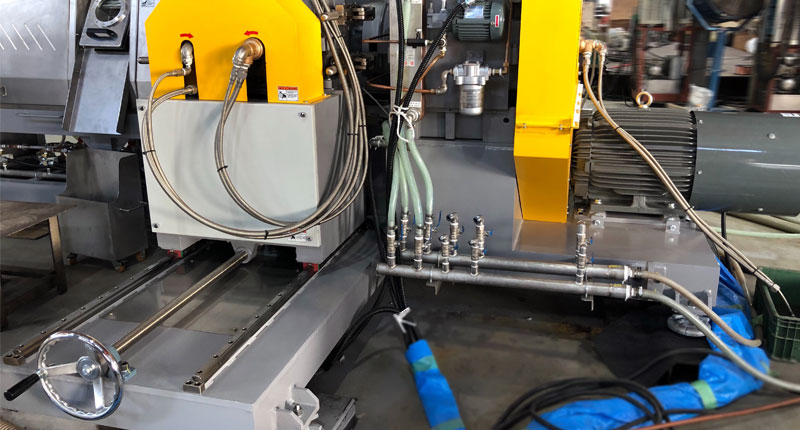

Use high-precision linear guide, operate easier ,easy clean, and save time and energy.

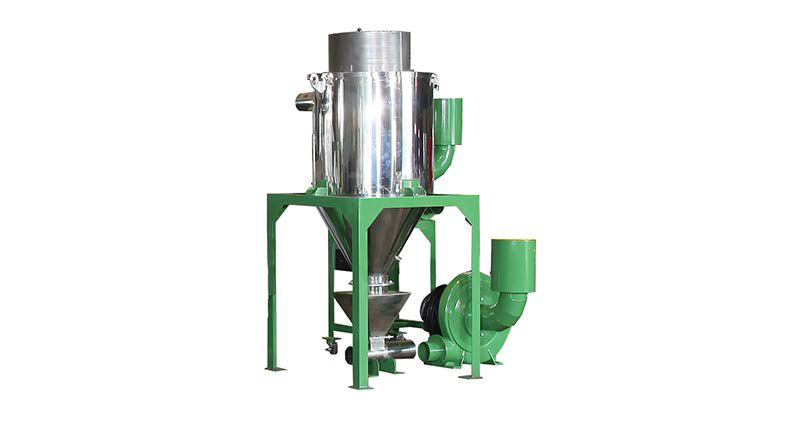

Use double layer cyclone cooling tank to cool down finished products.
You can purchase our kneader and hopper conveyor additionally as options for pre-kneading.

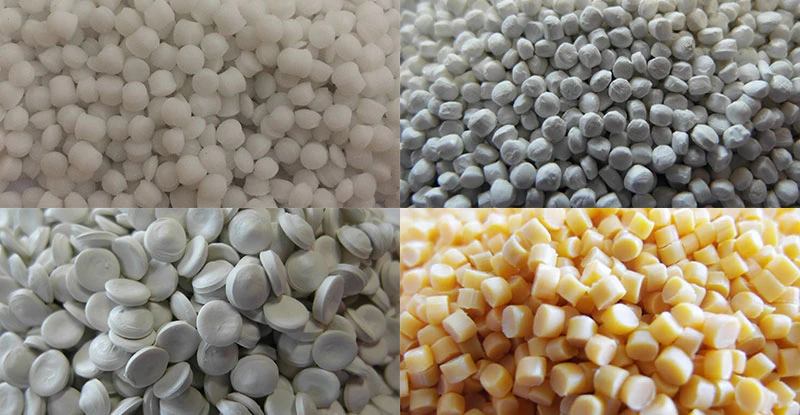

Wooden Powder, Husk Rice Composite Material + PP, CaCO3
CaCO3
TPU
EVA
