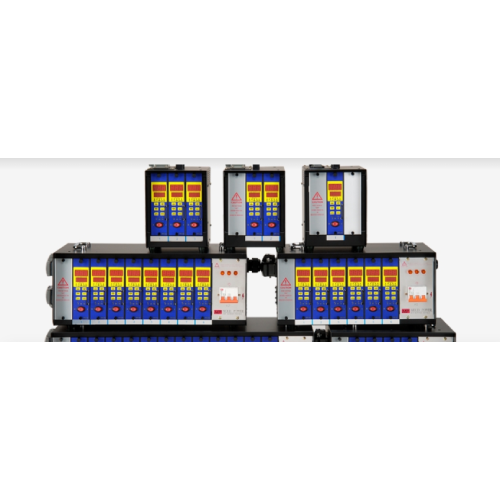

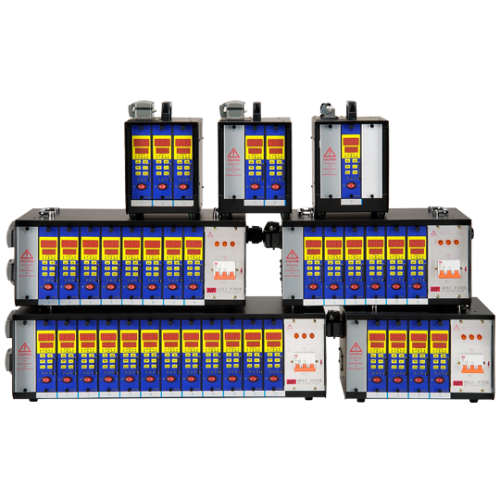

MICROCOMPUTER TEMPERATURE CONTROLLER (GENERAL TYPE)



Product Note

  • PID microcomputer controller with two monitors indicating the current.

Product Features

  • PID microcomputer controller with two monitors indicating the current .
  • Automatic or manual function settings and power output etc. can be directly controlled with operating the button on the temperature table.
  • Each point is equipped with two-way and high-speed fuse protection and an automatic preheat dehumidification function, to ensure a longer life of the electrics.
  • Mainframe construction with high quality approved by all safety requirements, all the components are made in Europe, America and Japan.




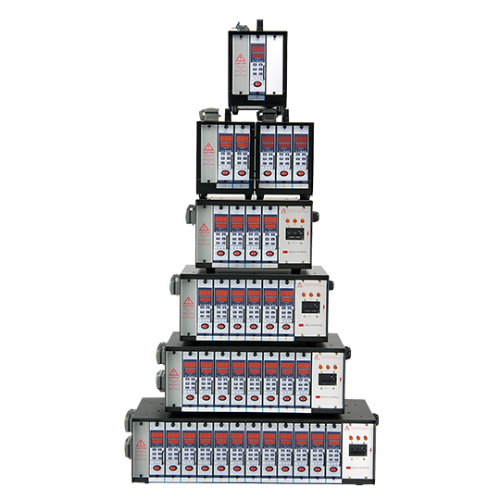

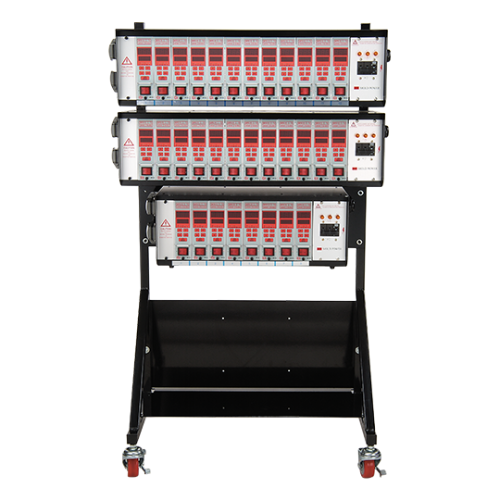

 MICROCOMPUTER TEMPERATURE CONTROLLER SERIES (STANDARD TYPE)

Product Note

  • Mainframe construction with high quality approved by all safety requirements, all the components are made in Europe, America

Product Features 

  • The case is well-constructed, and all mechanical and electric components are in line with safety certificate standards.
  • Panel with modularity design and easy to maintain, dismantle and repair.
  • Multiple specifications and easy to expand during require.
  • Good mobility mainframe and easy handling.


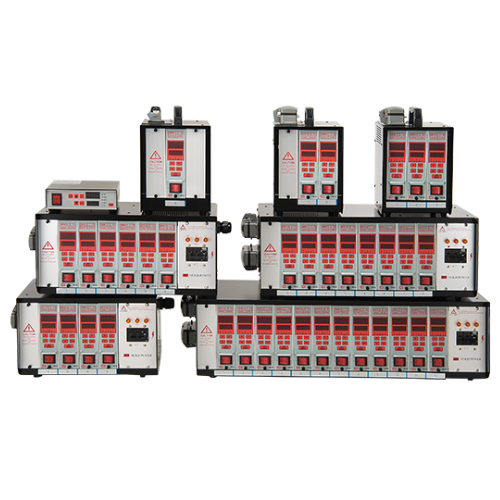

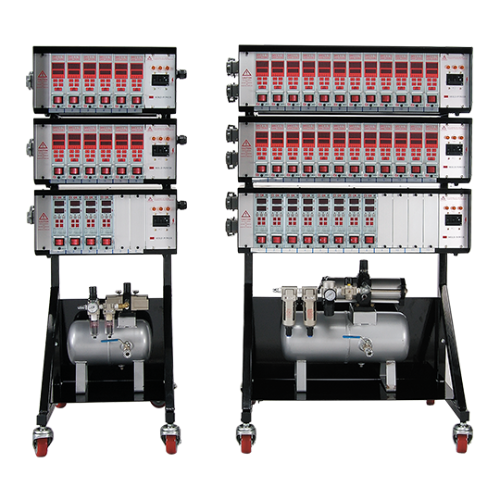

Microcomputer Temperature Controller Series (High Level)


Product Note

  • Mainframe construction with high quality approved by all safety requirements, all the components are made in Europe, America

Product Features

  • Contains both MPR and MPE model types.
  • With simultaneous multi-stage control and help customer to reduce cost.
  • Through the communication port setting the procedure, file storage.
  • Detection Module eletric leakage /FUSE open circuit breakdown signal.
  • A variety of protection functions are programed to avoid human error causing damage to thermocouples, heaters, and temperature control panels.




Product Note

  • Muti-Cavity Hot Runner Temperature Controller 24~240 zones temperature control

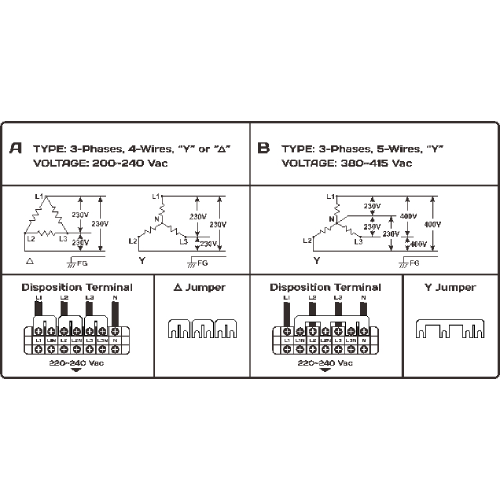

Power Disposition

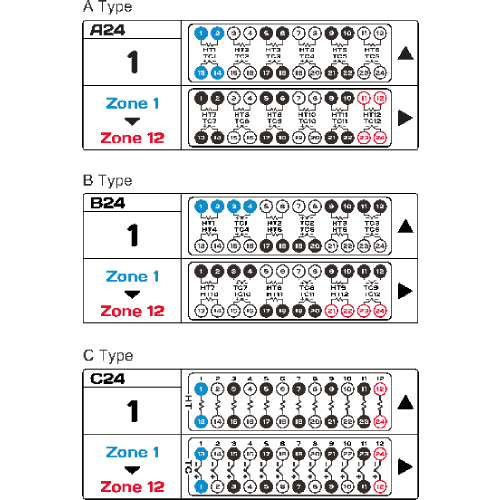

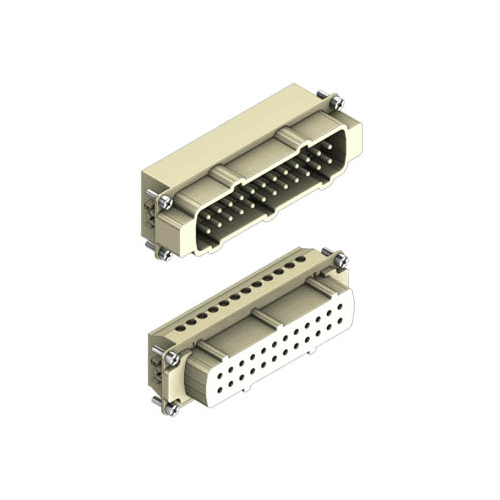

Connector Wiring


HMI Specifications

MPC520 MPC510
Size 10.4" diagonal(4 : 3) 7" diagonal(16 : 9)
Max. Resolution 800*600 800*480
Type TFT LCD
Max. Colors High Color(65536)
Backlight Type LED
Backlight Life (hr) 20,000
Display Contrast 400(Typ.) 500(Typ.)
Luminance (cd/m2) 400(Typ.) 300(Typ.)
Operation Resistive Touch Screen(analog)
CPU RISC ARM 32Bit CPU(ARM926EJ-S，200MHz)
Backup SRAM 128K Bytes(Optional: 1M Bytes)
Working Memory 64M Bytes
Built-in Storage Memory Typical 8M Bytes, 128M Bytes(NAND Flash)
Real Time Clock (RTC) YES
Micro-SD Slot YES(SDHC)
USB Client YES(USB 2.0)
USB Host YES(USB 2.0)
Serial D Sub 9pin : COM1(RS232/RS422/RS485), COM3(RS232)
Terminal 5pin : Type A, B, C (Optional: Isolated Type A, B, C)
Type A: RS422/485, Type B: RS485/RS232, Type C: RS232(Include RTS,CTS)
Supply Voltage 24VDC±10% Isolated
Consumption 20W 15W
Operating Temperature 0°~50°
Relative Humidity 10%~90%
Shock (operation) 10 ~ 55Hz(X,Y,Z direction, 1G, 30 Mins shock testing)
EMI FCC Part 15 Class A
CE EN61000-6-4, EN61000-3-2, EN61000-3-3, EN61000-6-2
Ingress Protection NEMA4, IP66
Cooling Natural Cooling
Dimension WxHxD (mm) 270.1 x 212.1 x 42.5 188 x 143.3 x 36
Cutout Dimension WxH (mm) 259.5 x 201.5 175 x 132.5
Net Weight (kg) 1.2Kg 0.6Kg

Monitor & Control Screens Introduction

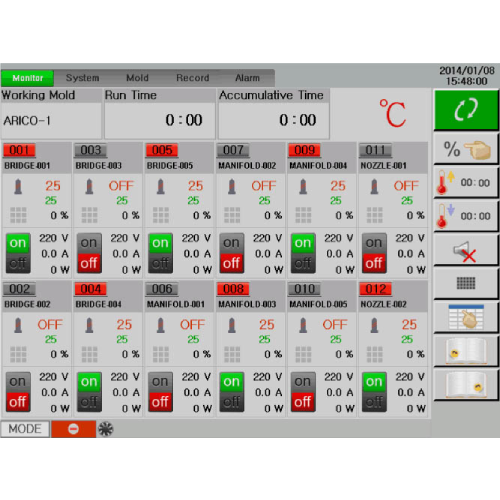

Main menu of the monitor：
Working mold temperature display per zone, editable zone name, practical temperature, output, Heater data and other function.

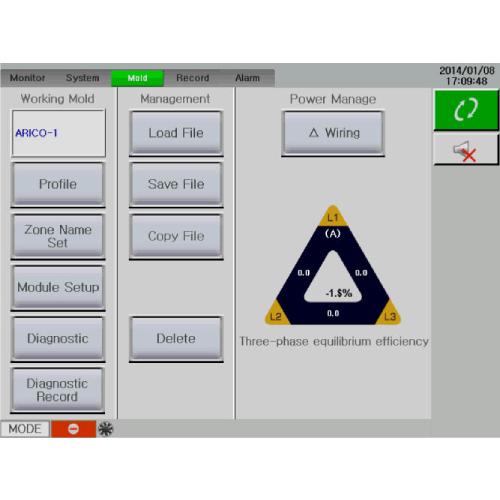

Mold page：
Mold profile, zone name set, module setup, diagnostic, diagnostic records, file load/save/copy/delete, power manage, wiring.

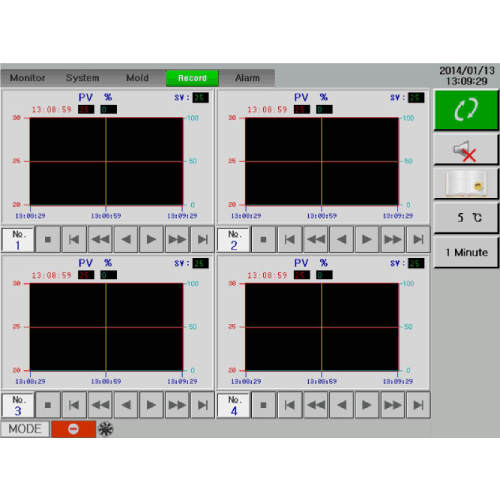

Record curve log page：
Practical value and output percentage curve display; set up 8 sections at once.

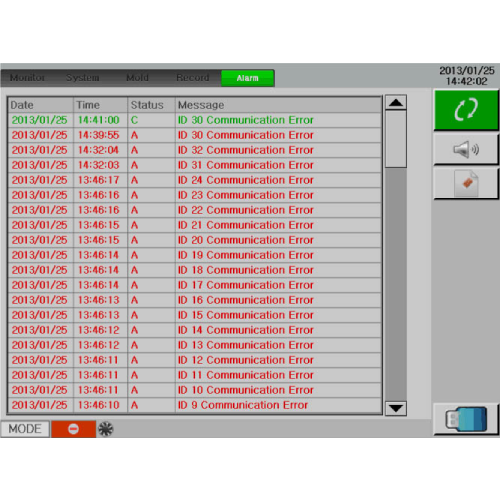

Alarm log page：
Alarm history log inquiry.

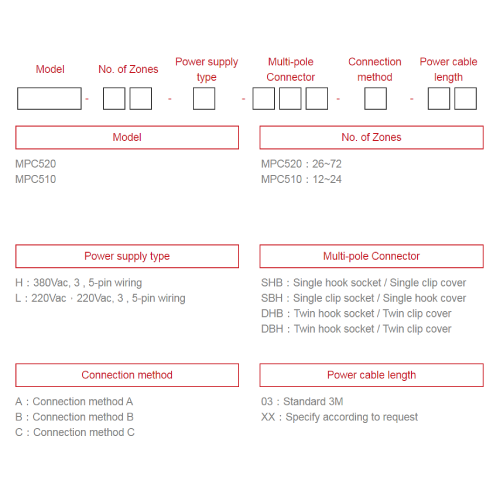

Order List

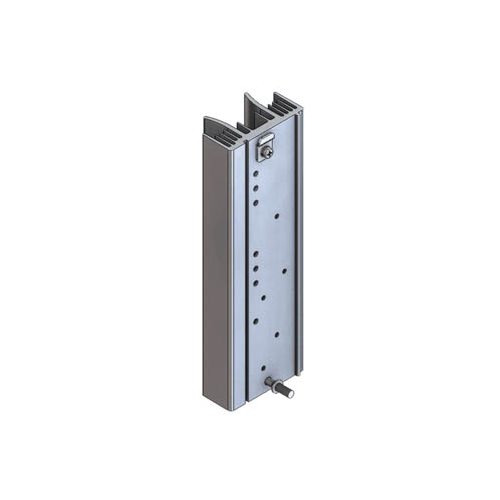

Optional Accessories

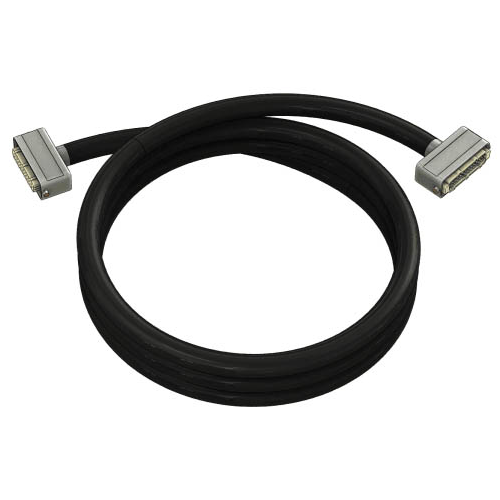

  • Extension cable, Blank faceplate, USB, Multi-pole Connector





Product Features

  • Adjustable user perspective: 110°～145°
  • Rack type cabinet design
  • USB port
  • 10.4” TFT SVGA LCD
  • NAND Flash 8M +128M
  • Module section 15A 2 zone / 30A 1 zone
  • The module plug-in designed for maintains easily

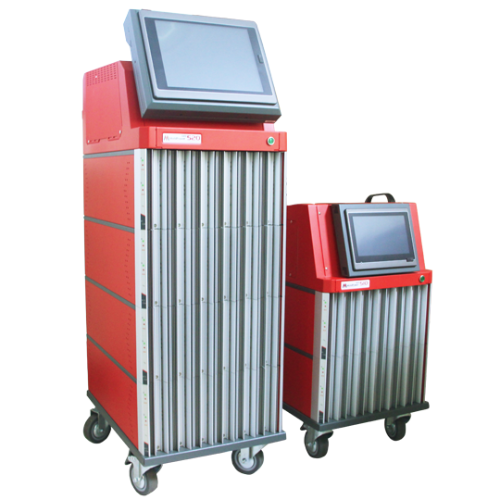

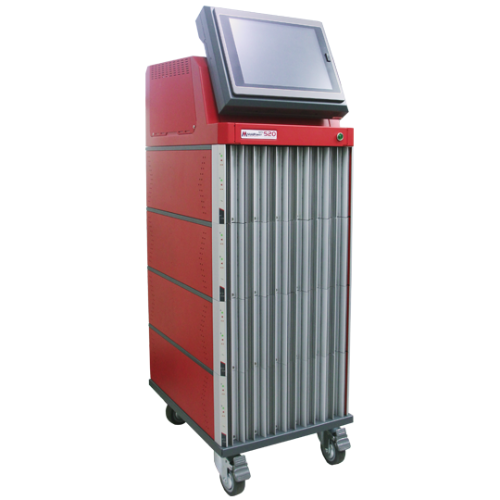

The MPC520 multi-cavity hot runner temperature controller. One single temperature controller has 26 to 72 points and even up to 240 points in a network. Maintenance operations can be simplified with its modularized device design and requirement-based configuration. The purchasing costs are greatly reduced by its unique temperature control, with two points within one level.
The GUI based user interface, along with its adjustable perspective angle, is easy for fast adoption in multi-points control. The RS485 communication function enables you to set up multiple controls at once to simplify the required operations. The built-in and practical current sensor and indicator functions benefit various applications, especially automotive, bottle billet injection, and medical supplies, by realizing the concept of one-stop control.

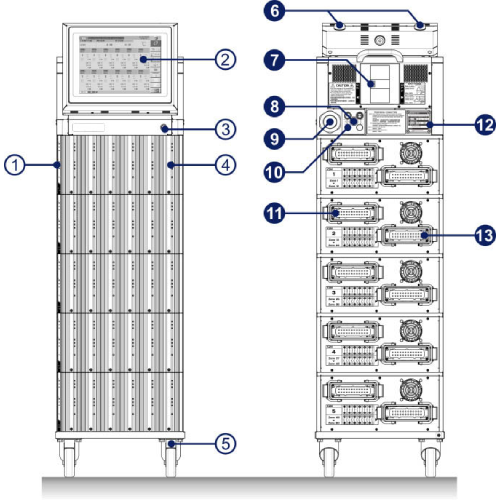

External Diagram

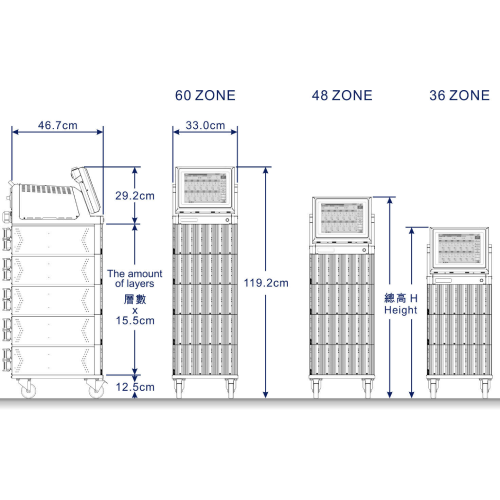

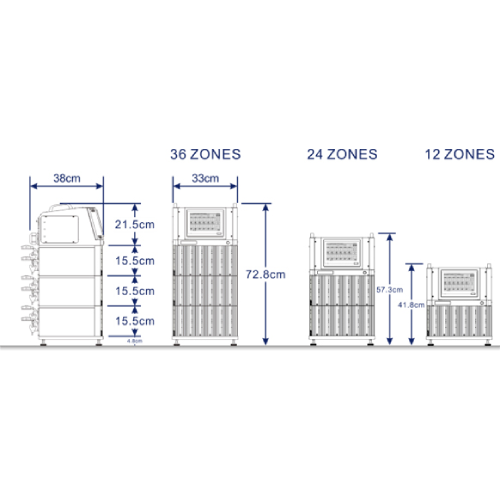

Height (H) = 41.7+15.5 x (the amount of layers) cm


1. Zone Marking
2. HMI
3. Power indicator
4. Temperature control module
5. Lockable roller
6. System status indicator
7. Main power switch/ NFB
8. Overvoltage source indictor light (OVS)
9. Power cable
10. Communications port
11. Multi-pole connector 1
12. Machine name plate
13. Multi-pole connector 2




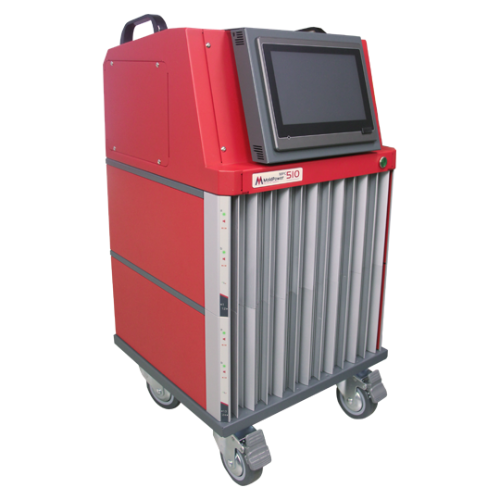

Product Features

  • Adjustable user perspective: 110°～145°
  • Rack type cabinet design
  • USB port
  • 10.4” TFT SVGA LCD
  • NAND Flash 8M +128M
  • Module section 15A 2 zone / 30A 1 zone
  • The module plug-in designed for maintains easily

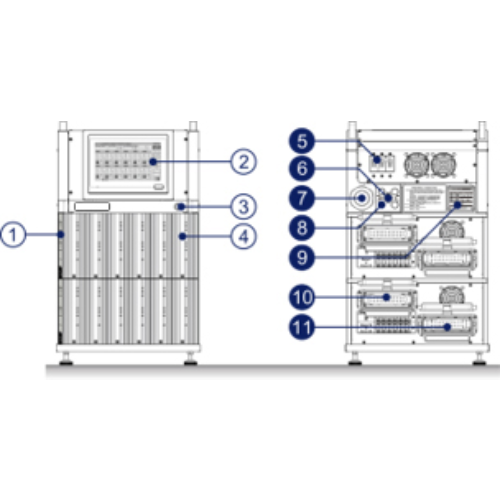

External Diagram


1. Zone marking
2. HMI
3. Power indicator
4. Temperature control module
5. Main power switch / NFB
6. Over-voltage/phase-lose source indicator (OVS)
7. Power cable
8. Communications port
9. Machine name plate
10. Multi-pole connector 1
11. Multi-pole connector 2



Function

1. Automatic ID recognition
2. PID auto temperature control
3. Editable zone name (auto/manual)
4. Automatic shutdown for heater abnormality
5. Current, output percentage display function
6. Fast alternative for 230V/380V power input
7. Easy swapping for individual module failures
8. Heat dissipation function for heat sink over-heat*
9. Follower function for thermocouple disconnection
10. 8 curves display(temperature, output percentage)
11. Synchronized temperature raising/lowering

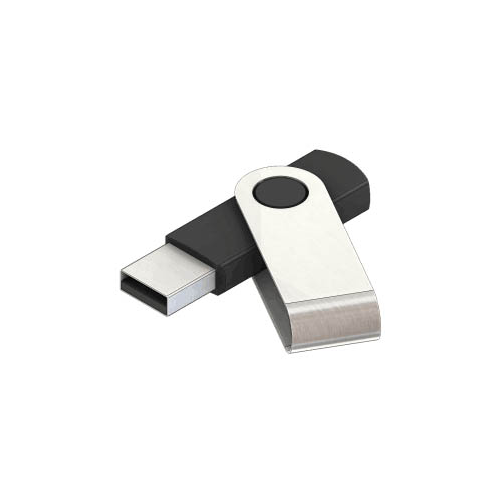

12. Module memory(internal and external USB drive)
13. Internal alarm buzzer(with alarm sound stop switch)
14. Detection for heater open and short circuits
15. RS485 communication function: ASCII and RTU mode
16. To protect the power source input wrong witting and less phase
17. Selectable two output trigger modes (Phase angle / Zero cross)
18. Temperature range: Thermocouple K TYPE:0~600°C(32~999°F)/J TYPE:0~600°C(32~999°F)
19. Self diagnosis log:(current, voltage, heater impedance, power, thermocouple, heater, fuse, TRIAC status)
20. Alarm indicator*
21. Group setup function
22. Auto/Manual function
23. Web based file output function (USB)
24. Selectable six alarm modes
25. Load Power Usage display per zone
26. Detection for fuse breakage
27. Setting for output percentage limit
28. Power balance detection and display
29. Thermocouple break and inverse detect
30. Selectable two thermocouple types (J/K)
31. Selectable two temperature scales (°C/°F)
*： Only for MPC520
