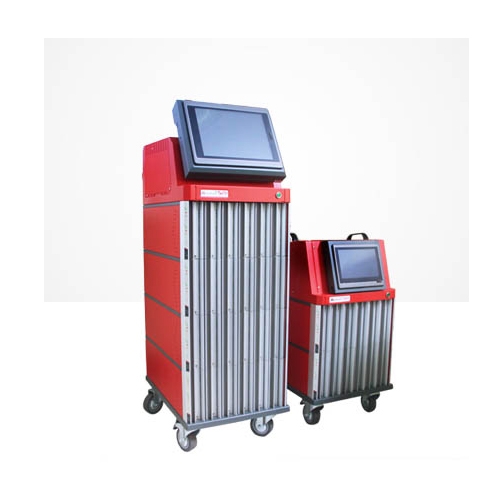

Temperature Controllers MPC510/520 Series

Classification : Temperature Controllers

MOLDPOWER CO., LTD.

Country: Taiwan

Phone: 886-6-2056-388。

Fax: 886-6-2056-399。

Contact Person: Mr. Yeh

Inquiry Now

	MPC520	MPC510
Size	10.4" diagonal(4 : 3)	7" diagonal(16 : 9)
Max. Resolution	800*600	800*480
Type	TFT LCD
Max. Colors	High Color(65536)
Backlight Type	LED
Backlight Life (hr)	20,000
Display Contrast	400(Typ.)	500(Typ.)
Luminance (cd/m2)	400(Typ.)	300(Typ.)
Operation	Resistive Touch Screen(analog)
CPU	RISC ARM 32Bit CPU(ARM926EJ-S，200MHz)
Backup SRAM	128K Bytes(Optional: 1M Bytes)
Working Memory	64M Bytes
Built-in Storage Memory	Typical 8M Bytes, 128M Bytes(NAND Flash)
Real Time Clock (RTC)	YES
Micro-SD Slot	YES(SDHC)
USB Client	YES(USB 2.0)
USB Host	YES(USB 2.0)
Serial	D Sub 9pin : COM1(RS232/RS422/RS485), COM3(RS232) Terminal 5pin : Type A, B, C (Optional: Isolated Type A, B, C) Type A: RS422/485, Type B: RS485/RS232, Type C: RS232(Include RTS,CTS)
Supply Voltage	24VDC±10% Isolated
Consumption	20W	15W
Operating Temperature	0°~50°
Relative Humidity	10%~90%
Shock (operation)	10 ~ 55Hz(X,Y,Z direction, 1G, 30 Mins shock testing)
EMI	FCC Part 15 Class A
CE	EN61000-6-4, EN61000-3-2, EN61000-3-3, EN61000-6-2
Ingress Protection	NEMA4, IP66
Cooling	Natural Cooling
Dimension WxHxD (mm)	270.1 x 212.1 x 42.5	188 x 143.3 x 36
Cutout Dimension WxH (mm)	259.5 x 201.5	175 x 132.5
Net Weight (kg)	1.2Kg	0.6Kg
