Stepper-Controlled Proportional Valve 0-400L/min

Classification : Proportional Flow Control Valve
Country: Taiwan
Phone: +886-4-24874219
Fax: +886-4-24864269
Contact Person: Jerry Wu
Video Inquiry Now

The valve provides high precision flow control of liquid and gas.

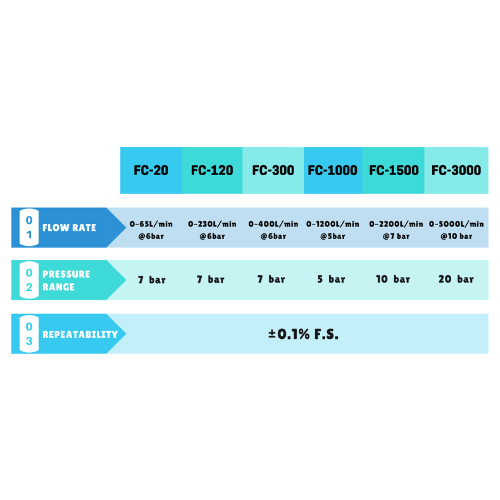

Repeatability can reach as high as 0.1% F.S with extremely low hysteresis. FC300 series proportional needle valve can reach flow rate up to 400 L/min (14.2 SCFM) at 87 psig inlet pressure.
Takes 0-10V, 4-20mA or RS85 signal to change orifice. All models can customize wet material to stainless steel, consult factory for customization.

Proportional Flow Control Valve consists of PM series driver and FC series proportional flow valve. With an input signal either through analogue or digital, the needle inside the proportional valve moves proportionally to the signal. This series is able to control the flow rate of air and liquid with high resolution, high accuracy, and high repeatability. It is developed for industries that require a high degree of adjustment in flow rate.

Series PM driver provides series FC valve with the required power and control signal (step and direction). It controls the step of a bipolar stepper motor with an analogue signal (0-10 VDC/4-20mA/RS485 Modbus).

PM

Input signalVDC 0-10V / 4-20mA / RS485
SupplyDC24V (≦12W)
Indicator LED Status
(* with Encoder function )
on/off (LED on is motor running)
on/off (LED off is motor stopping)
on/off (LED flashing is motor error)
*error/null (LED on is encoder error)
*error/null (LED off is encoder normal)
Encoder Resolution1.587×10-3 mm
Motor Status outputSink 50mA
Temp. Range (Operating)0-60℃
Cable Length1 meter, consult for longer cable

FC

ModelFC-300
Valve Type2-Way Proportional Needle valves
Port SizeG 1/8"
MediumCompatible gases and liquids
Pressure Range-1~7bar
Flow Range of air0~400L/min@6bar
Flow Range of water0~8L/min @6bar
Repeatability±0.1% F.S.
Flow Resolution0.3L/min@3bar
Temperature Range-70~84°C
Full Stroke Time2 sec
Body materialAluminum or Stainless steel
SealsViton or FFKM
Ingress ProtectionIP52
