Stepper-Controlled Proportional Valve 0-1200L/min

Classification : Proportional Flow Control Valve

KAO LU ENTERPRISES CO.,LTD.

Country: Taiwan

Phone: +886-4-24874219

Fax: +886-4-24864269

Contact Person: Jerry Wu

Video Inquiry Now

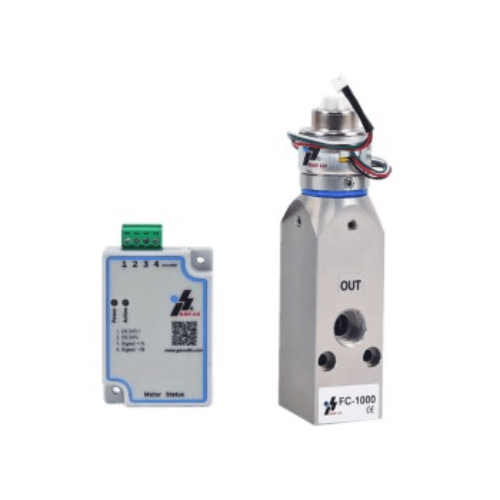

Proportional Flow Control Valve consists of PM series driver and FC series proportional flow valve. With an input signal either through analogue or digital, the needle inside the proportional valve moves proportionally to the signal. This series is able to control the flow rate of air and liquid with high resolution, high accuracy, and high repeatability. It is developed for industries that require a high degree of adjustment in flow rate.

Series PM driver provides series FC valve with the required power and control signal (step and direction). It controls the step of a bipolar stepper motor with an analogue signal (0-10 VDC/4-20mA/RS485 Modbus).

Input signal	VDC 0-10V / 4-20mA/RS485
Supply	DC24V (≦12W)
Indicator LED Status(* with Encoder function )	on/off (LED on is motor running) on/off (LED off is motor stopping) on/off (LED flashing is motor error) ＊error/null (LED on is encoder error) ＊error/null (LED off is encoder normal)
Encoder Resolution	1.587×10^-3 mm
Motor Status output	Sink 50mA
Temp. Range(Operating)	0-60℃
Cable Length	1 meter, consult for longer cable

Model	FC-20	FC-120	FC-300	FC-1000	FC-1500
Valve Type	2-Way Proportional Needle valves
Port Size	G 1/8”			G3/8"	G3/8”
Medium	Compatible gases and liquids
Pressure Range	-1~7bar			-1~5bar	-1~10bar

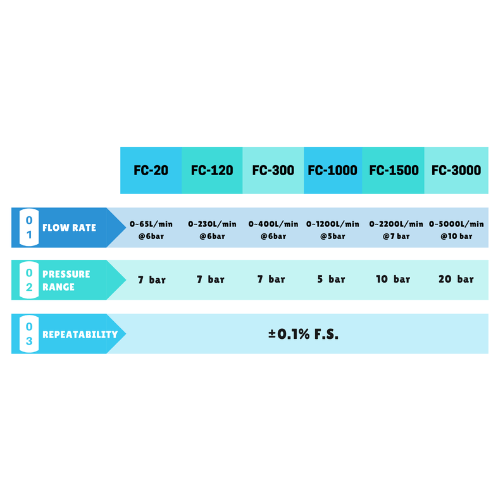

Flow Range of air	0~65L/min@6bar	0~230L/min@6bar	0~400L/min@6bar	0~1200L/min@5bar	2100L/min@7 bar
Flow Range of water	0~1L/min @6bar	0~4L/min @6bar	0~8L/min @6bar	0~28L/min @5bar	0~43L/min @7 bar
Linearity (10 – 90% )	±0.1%	±0.5%	±1%	±1%	±3%
Repeatability	±0.1% F.S.	±0.1% F.S.	±0.1% F.S.	±0.1% F.S.	±0.1% F.S.
Flow Resolution	0.1L/min@3bar	0.1L~0.2L/min@3bar	0.3L/min@3bar	0.3L~0.5L/min@3bar	1L~2L/min@3bar
Position Resolution	0.0127 mm/step	0.0127 mm/step	0.0254 mm/step
Temperature Range	0~84°Ｃ
Response Time	1.5 sec	2 sec	2 sec	2.5 sec	2.5 sec
Body material	Aluminum or Stainless steel
Seals	Viton or FFKM
Ingress Protection	IP52
